Automatic positioning system for printing decks; Video inspection system; 2 x edge guide control BST; Chiller for CI drum; Corona treater AFS; Chamber doctor blades; Electric ink pumps; Sleeves changing system on the machine (printing sleeves + aniloxes); Gear pitch 10mm;

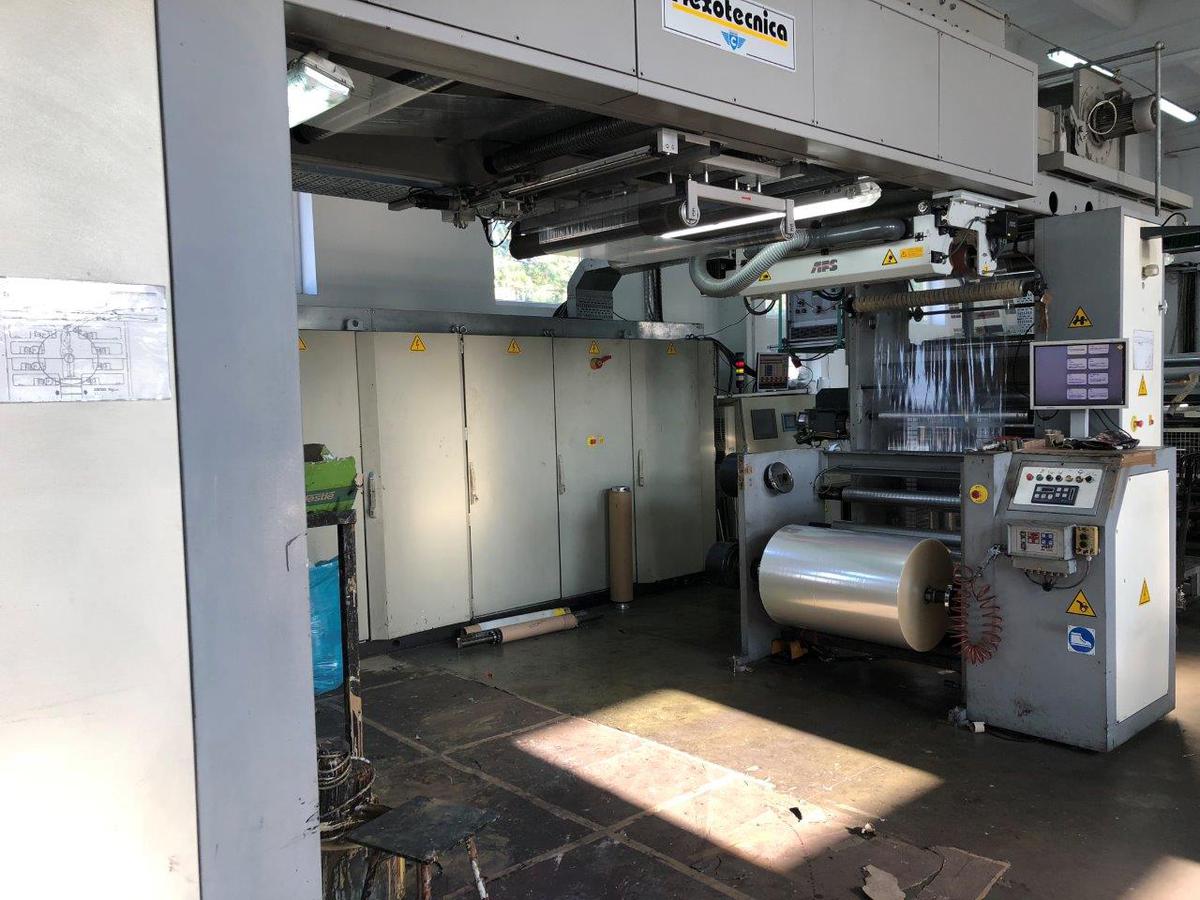

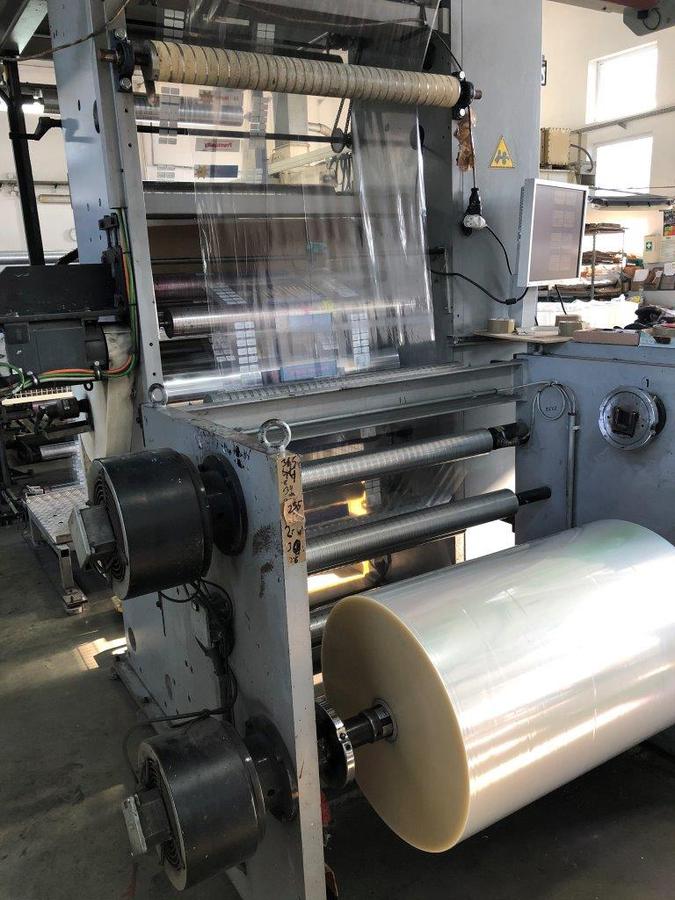

Flexotecnica
Tachys
| ID | 1063 |
|---|---|
| Type | Flexo CI |
| Year of construction | 2003 |
| In production | YES |
| Video | |
| Available | |
| Number of printing units | 8 |
| Web width max. | 950 |
| Printing repeat min. | 280 |
| Printing repeat max. | 750 |
| Speed max. | 300 m/min |
| Max. reel diameter - unwinding | 800 mm, odwijak podwójny |
| Max. reel diameter - rewinding | 1000 mm, nawijak automatyczny |
| Anilox rollers (sleeves) | 22 |
| Printing cylinders (sleeves) | 240 |
| Dimension L [m] | 15,1 |
| Dimension W [m] | 4,8 |
| Dimension H [m] | 4 |
