Automatic roll change for unwinder & rewinder
Column lifting system for shaft unwinder/rewinder
Digital printing unit control with servo drive
Currently printed materials: Papers with grammage 50-500 g
Water-based inks
Sound dampened: 85 dBA (VBG121)
Equipment: 70, 76, 100, 150 mm
Proven precision machine for professional packaging printing
8-color configuration for complex printing jobs
Compressed air cleaning system (7 bar)
Cooling water circuit with temperature control
Clamping shaft system also for film materials

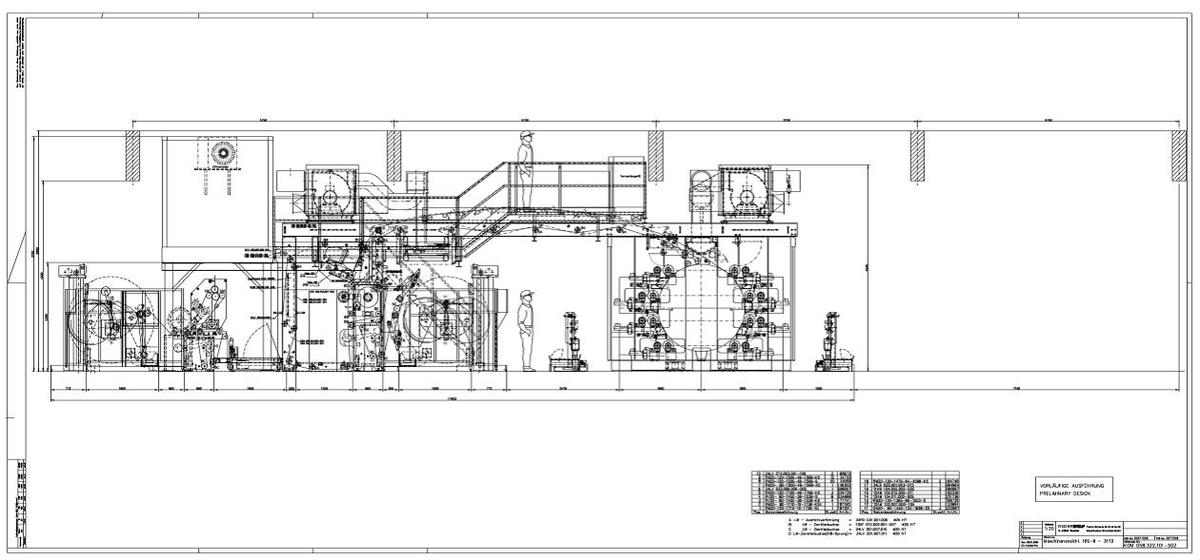

Machine plan and nameplate available
Ready for immediate operation after installation
The machine comes with comprehensive accessories:
Sleeves: Set for print widths from 60-1250 mm available
Print cylinders: Set for print lengths from 440-660 mm available
Diameter: 4x150mm, 4x 70mm, 2x76mm und 2x100mm
Fischer & Krecke
Flexpress 16S-8
| ID | 2063 |
|---|---|
| Type | Flexo CI |
| Year of construction | 2005 |
| In production | YES |
| Available | |
| Number of printing units | 8 |
| Web width max. | 1300 |
| Printing width max. | 1250 |
| Printing repeat min. | 320 |
| Printing repeat max. | 800 |
| Speed max. | 460 |
| Unwinding | Automatic |
| Max. reel diameter - unwinding | 1000 |
| Rewinding | Automatic |
| Max. reel diameter - rewinding | 1000 |
| Anilox rollers (sleeves) | 15 |
| Printing cylinders (sleeves) | ok.250 |
