Kampf

Materials: BOPP (12-38 µm), LLDPE (38 µm), PET (12 µm), PET/PET laminates (70 µm), HDPE (23 µm with 7 µm aluminum foil)
Max working width: 1750 mm
Min - max material width: 300 - 1750 mm
Max speed: 900 m/min (varies by material type, thickness, slitting width, core quality etc.)
Rewinder diameter: 610 mm
Rewinder Shaft: For inner core diameter: 76 - 762 mm (3”, 152, 4”, 6”) (available 6”)
Max Finish Roll Weight: 400 kg
Slitting System: Scissors cut
Slitting Width: 40-450 mm with 3” cores; 35-450 mm with 6” cores
Top knife diameter 130 mm, bottom knife diameter 105 mm, knife shaft diameter 90 mm
Unwinder parent roll diameter: 1300 mm
Max Weight (including core): 2500 kg
PLC Controller: Siemens S7-414 DP
Generator Brake
Pneumatic dancer roller
Scanning roller
Web controller
Actuator of Web Controller
Web Controller Operating Panel
Scanning head
Splicing table
Laser scanners at the unwind (unwind area equipped with laser scanner that monitors danger zones)
Unwind core specification:
Unwinder inner core diameter: 70 mm (3”) and 150 mm (6”)
Length: Minimum 500 mm, maximum 1900 mm

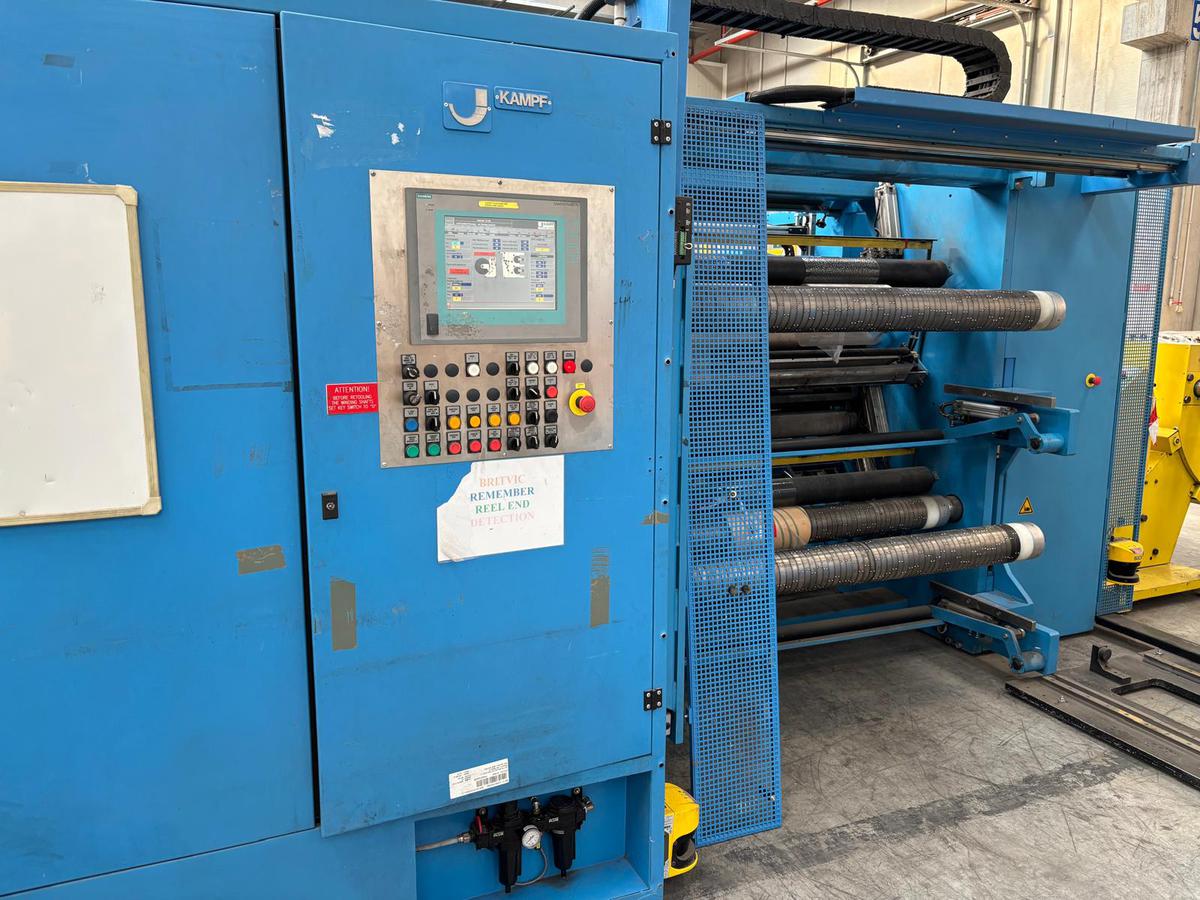

PLC control system
Laser scanners
Core positioner

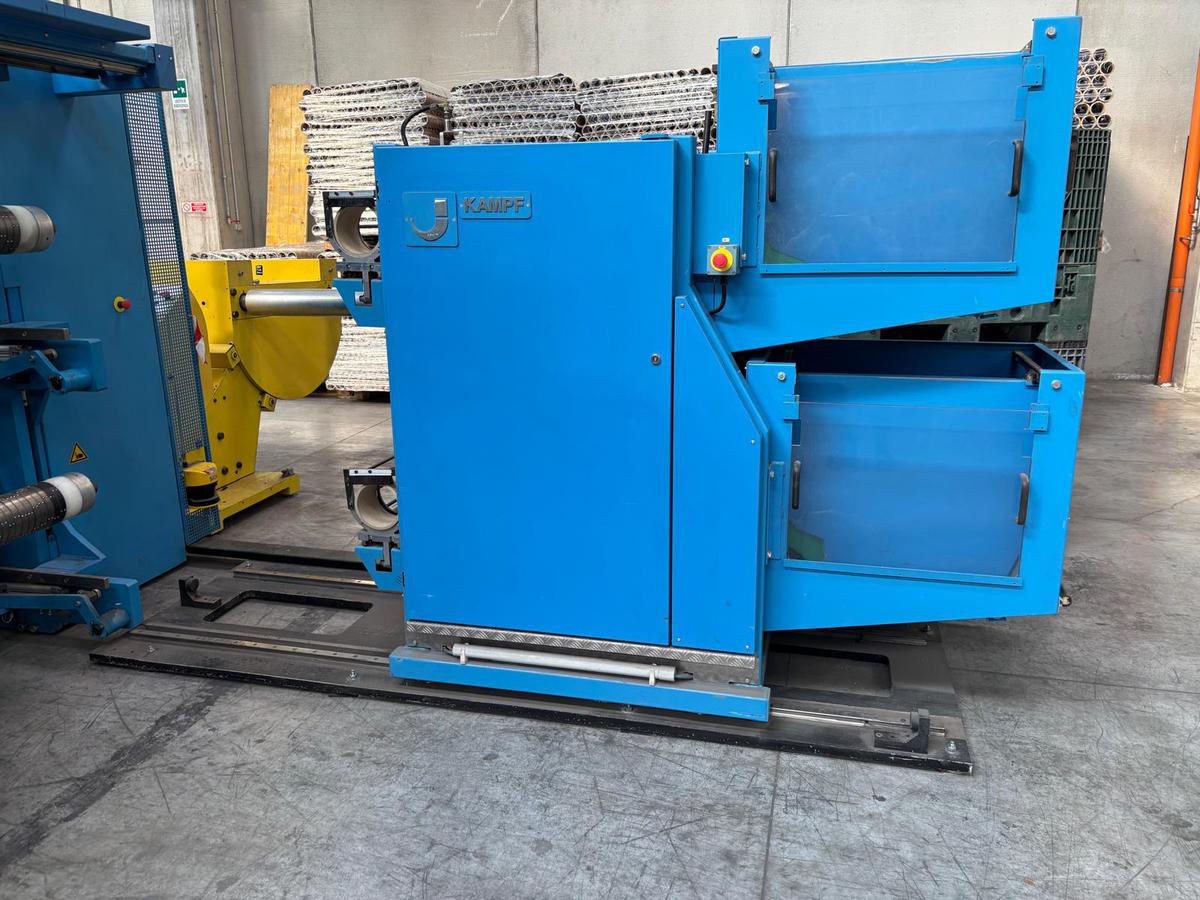

Core Handling
Hydraulic Supply
Center Drive
E - stop brake (Center Drive)
Idler Roller for Tangential Cut
Wrap Cut

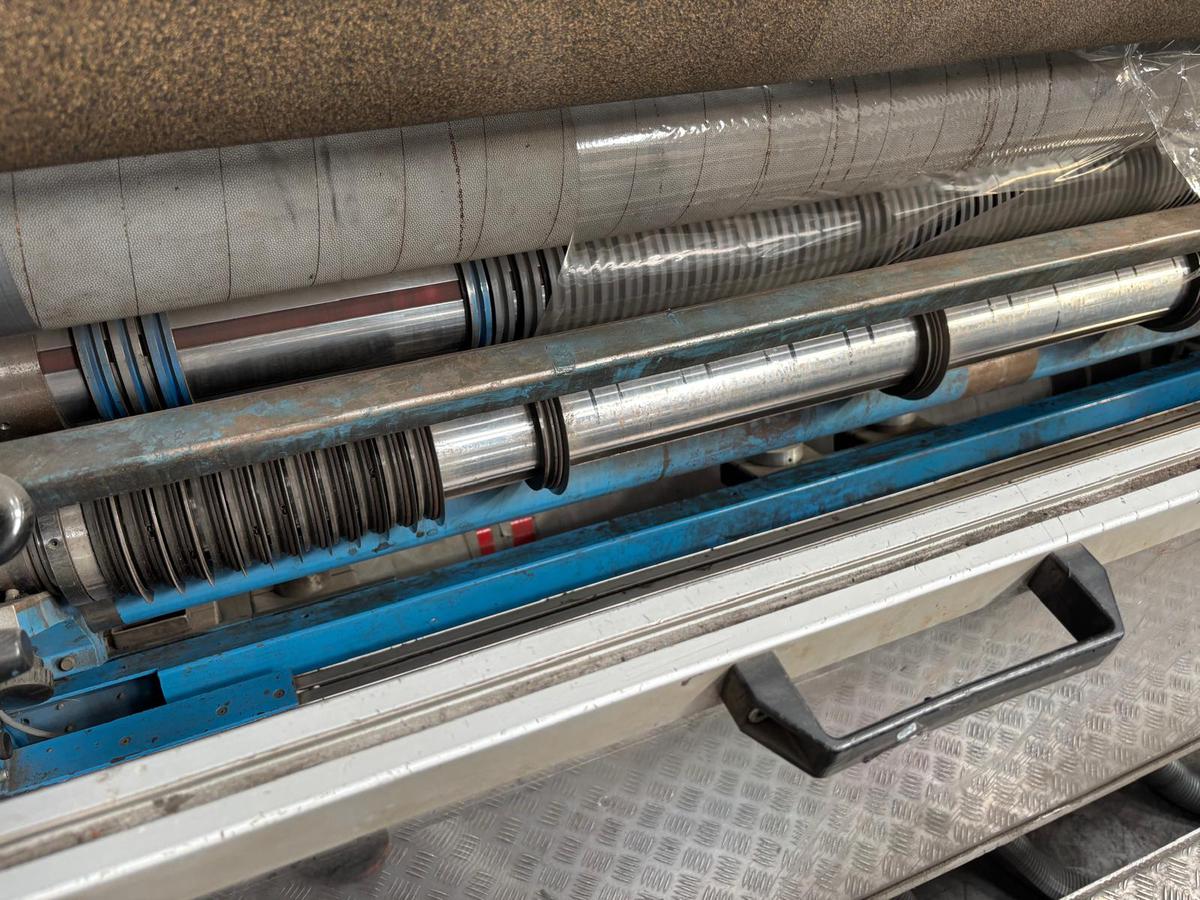

Longitudinal Slitting unit:
Bottom Knife Shaft
Top Knife Shaft
Laser Positioning Aid
Automatic knife positioning
Knife Positioning Control

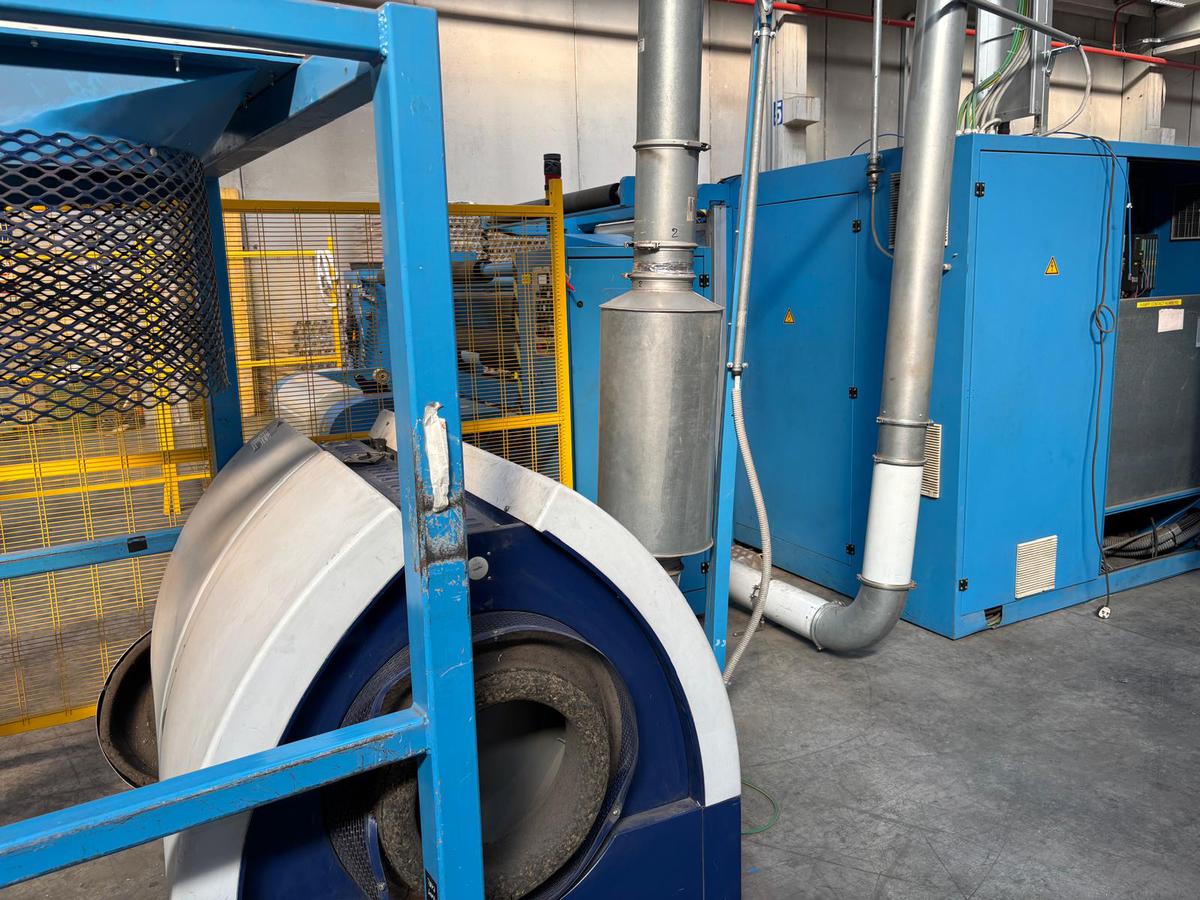

Edge trim suction unit

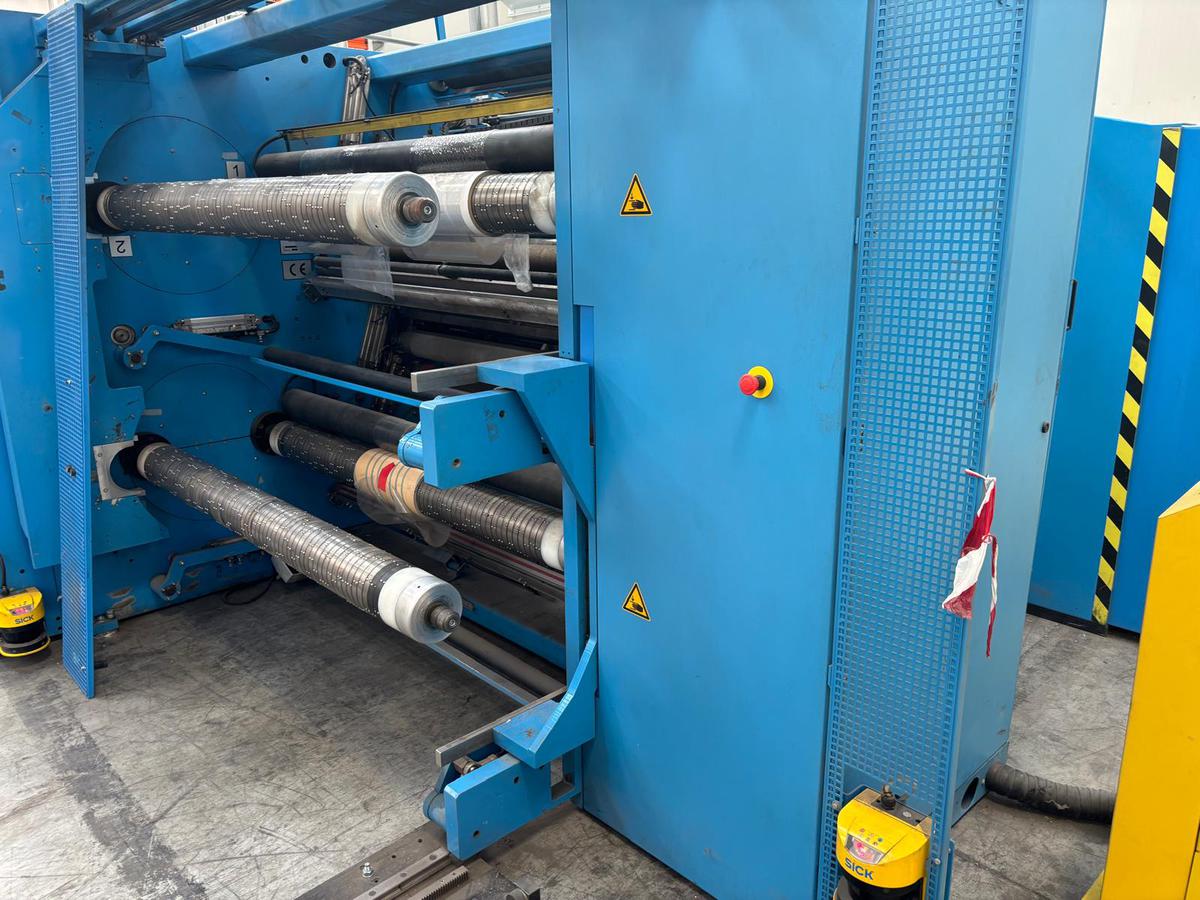

Rewind System:
The machine features two superimposed rewinders designed as turrets, each capable of accommodating two rewind shafts
Laser scanners at rewind (rewind area equipped with 2 laser scanners that monitor danger zones)
Core positioner
Core handling
Both rewinders are powered by a single AC motor via Poly-V belts

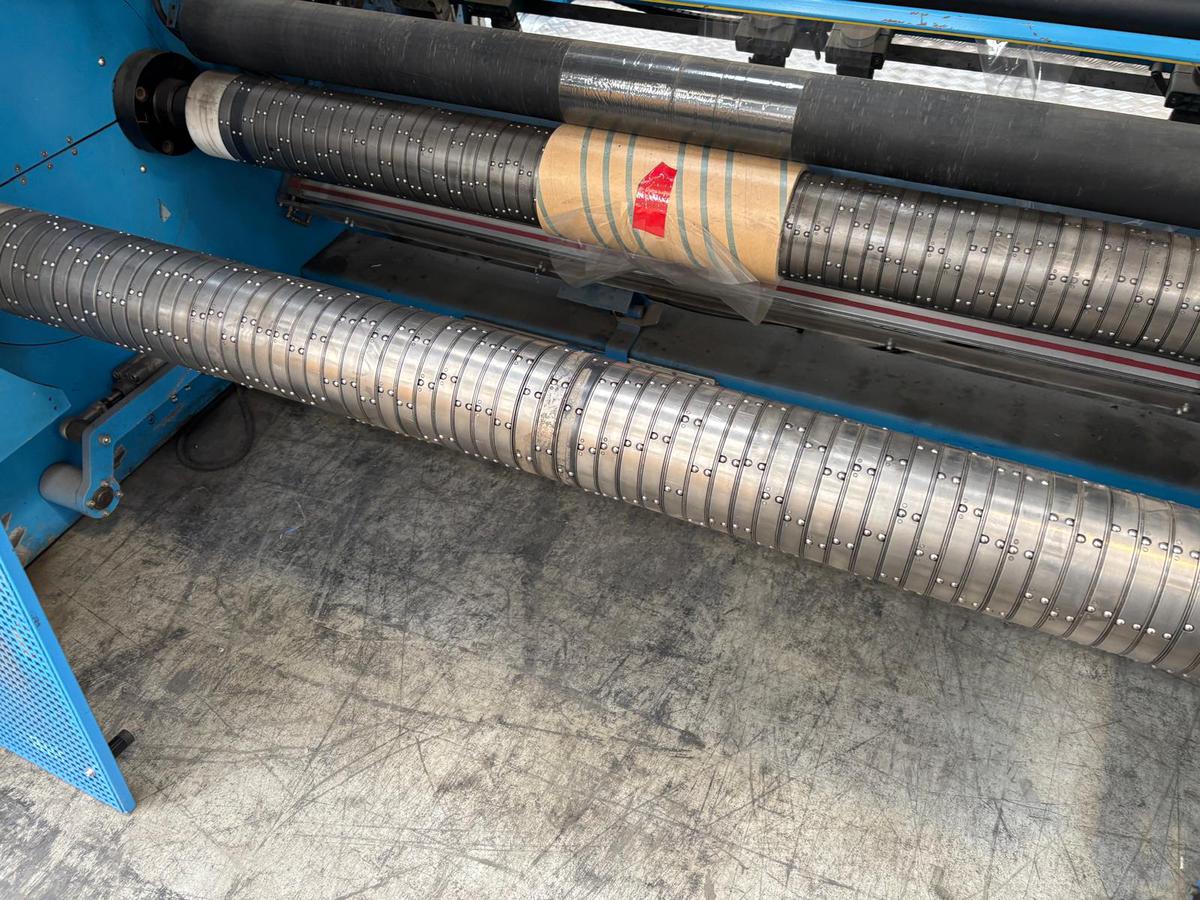

Radial Frictioning
Ball Frictions
Contact Rollers
Flat service applicator

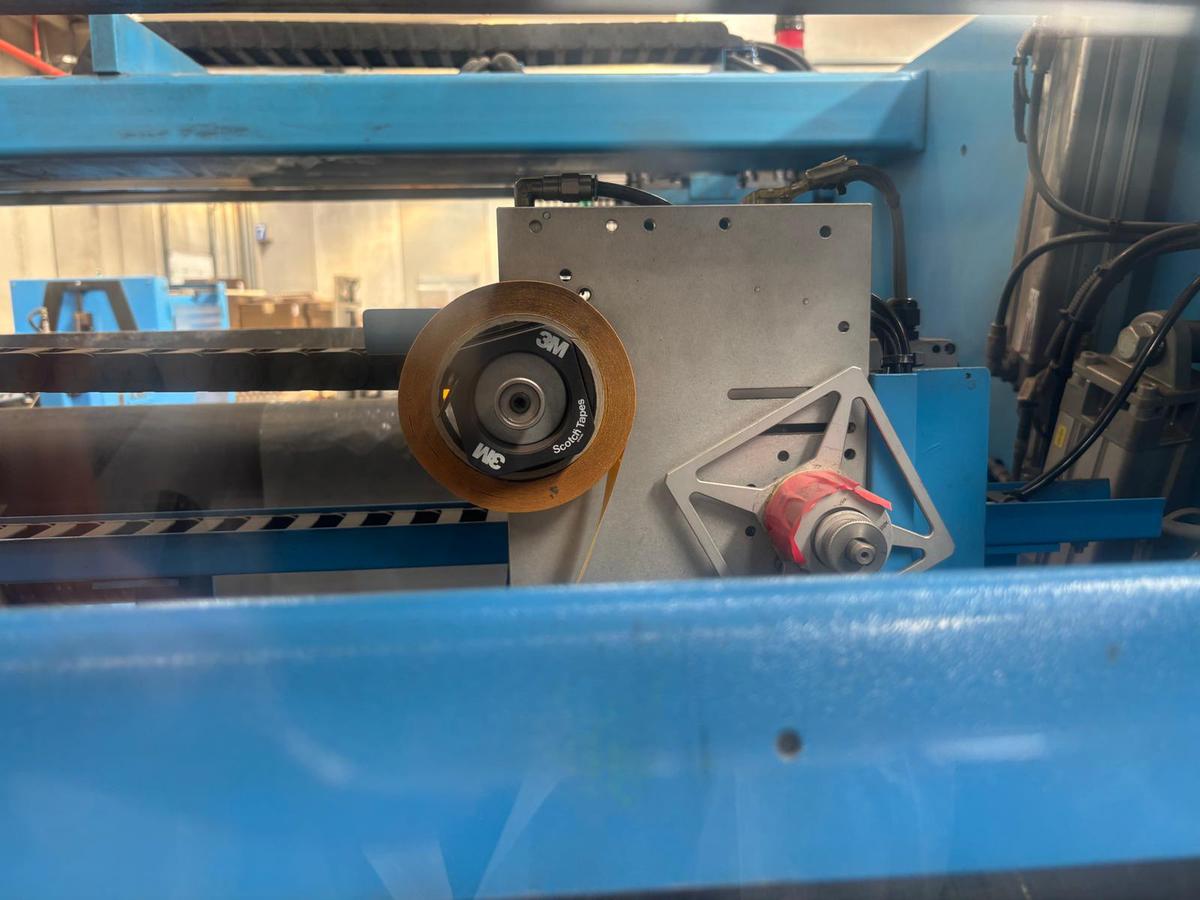

Cross cutting and splicing unit
