Film structure: A( int) - B ( HV Int) -C (Barrier ) - D (HV -Ext) -E ( Ext)
Material: LDPE , LLDPE, MDPE ,
Film Width: 2000
Output (Kg/h): 500
Extruder 1 Layer ref: : A
Screw diam 1: 70 mm -29D

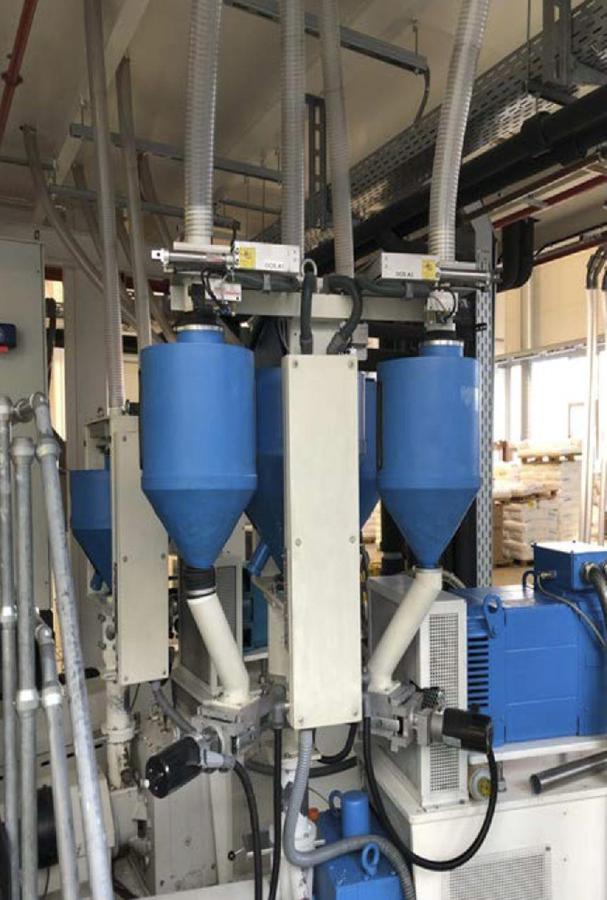

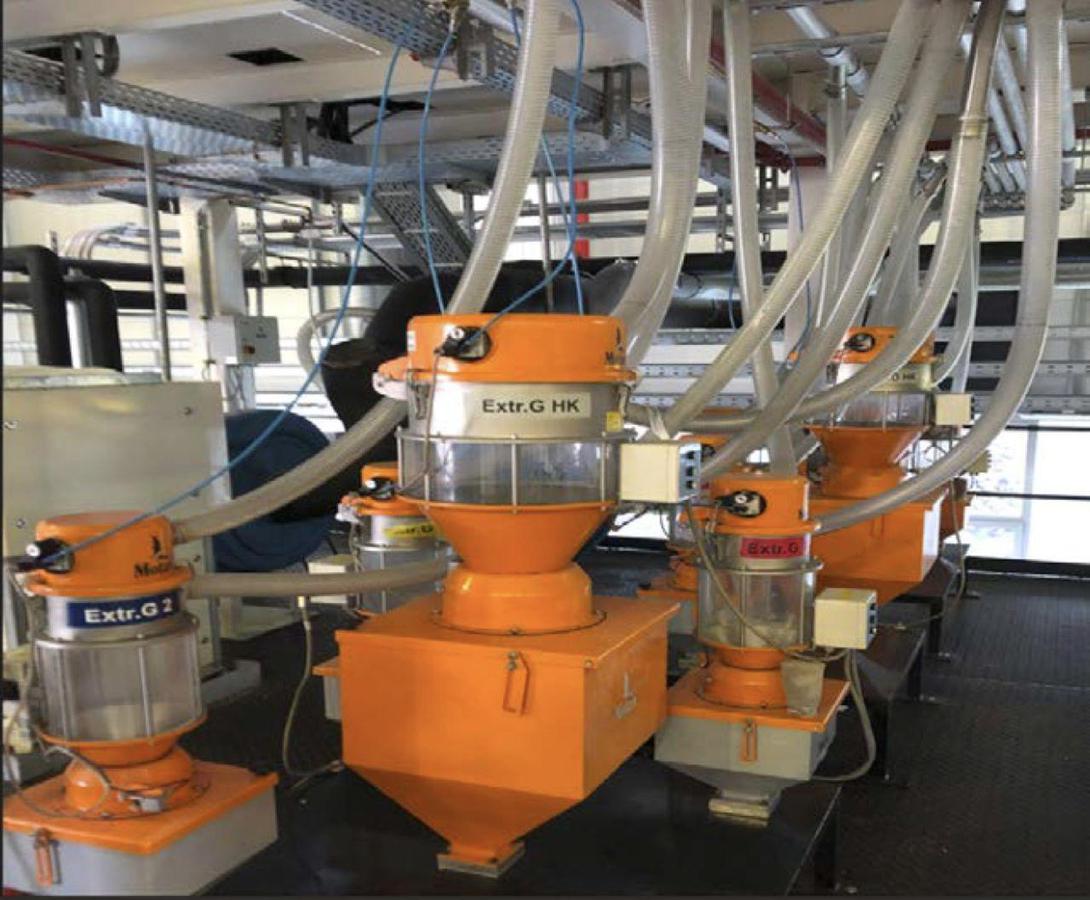

Description 1: 5 zone screw for LDPE, LLDPE, MDPE , HV -Gravimetric doser
Control - Motor 89 KW
Extruder 2 Layer ref: : B
Screw diam 2: 50 mm-25D
Description 2: 3 zone screw for LDPE, LLDPE/MDPE/HDPE mix, , HV -Gravimetric
doser Plast Control -motor 34 KW
Extruder 3 Layer ref: : C
Screw diam 3: 50 mm-25D
Description 3: 5 zone screw for EVOH, PA , LLDPE-MDPE- Mix , HV -Gravimetric
doser Plast Control - Motor 34 KW
Extruder 4 Layer ref: : D
Screw diam 4: 50 mm - 25 D
Description 4: 3 zone screw for LDPE, LLDPE/MDPE/HDPE mix, , HV -Gravimetric
doser Plast Control -motor 34 KW
Extruder 5 Layer ref: : E
Screw diam 5: 80 mm- 25D
Description 5: 5 zone screw for LDPE, LLDPE, MDPE , HV -Gravimetric doser Plast
Control - Motor 89 KW

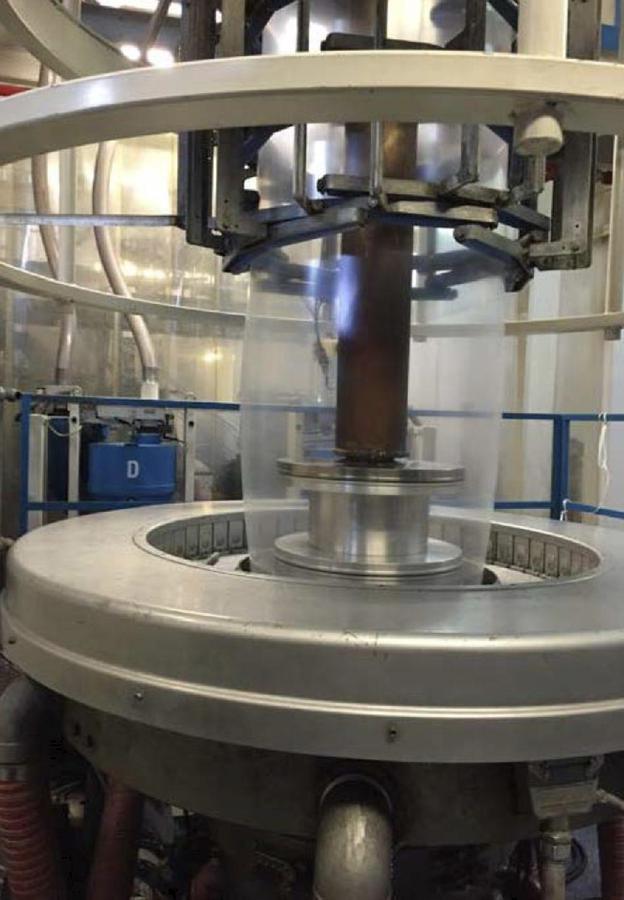

Head description: Kiefel FSBK 500 with IBC
Die diam (mm): 500
Thickness controll system: yes automatic -Cooling ring Plast Control- Measuring
system C- Scan Capacitive system

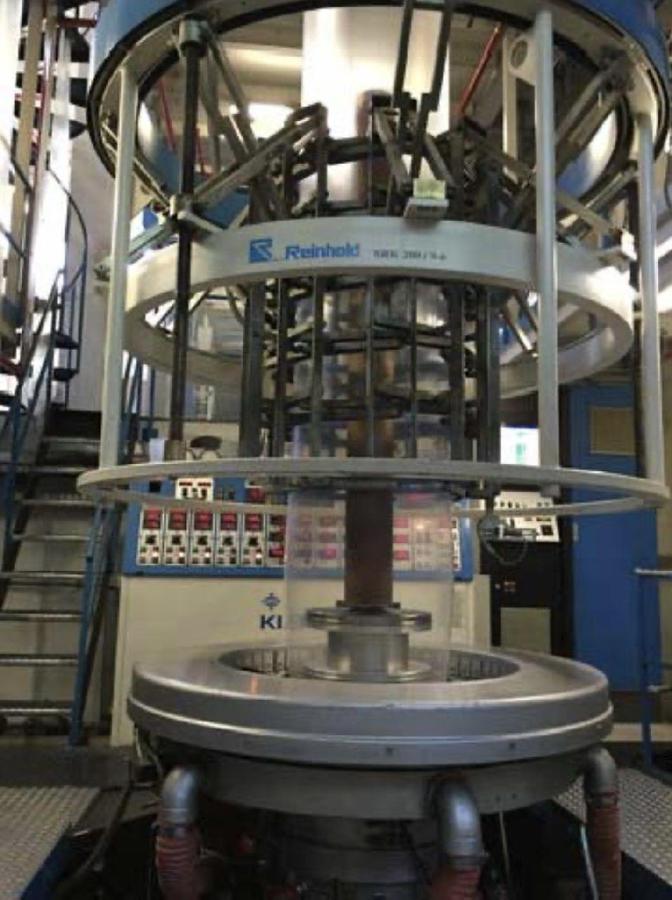

Bubble cage: Reinhold SRK 200/ 9-6

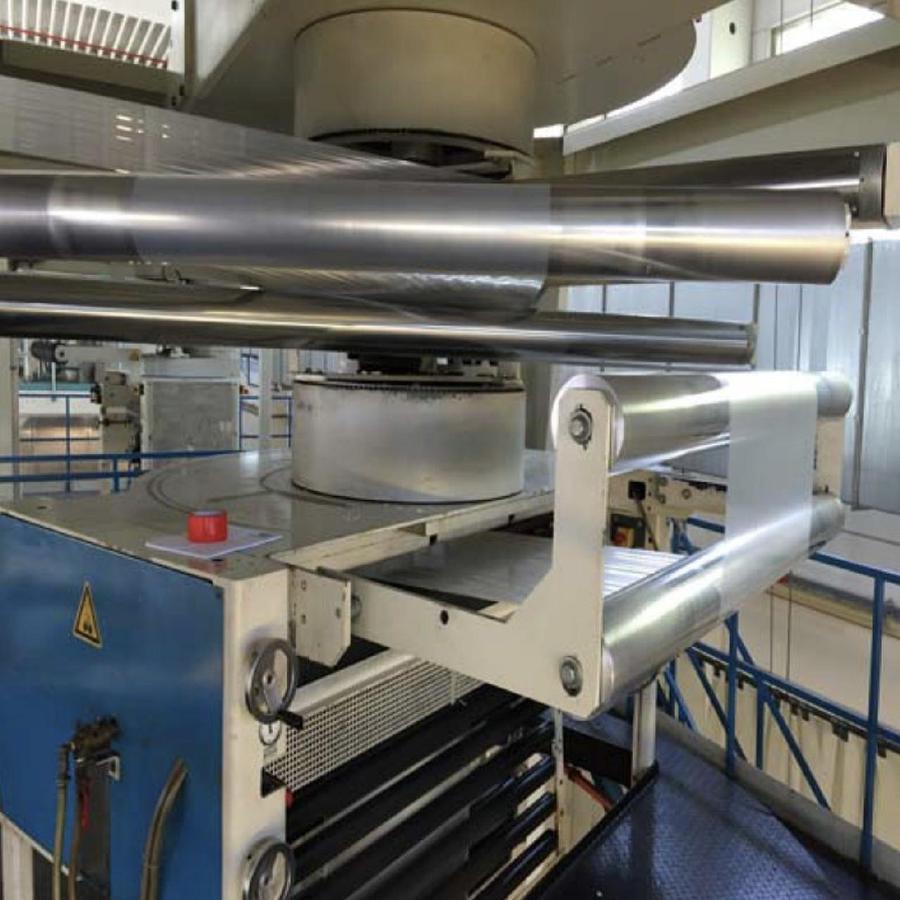

Take off unit: Reinhold
Corona treatment: AFS Nax 52 mN/m
Web guide: Ehrard & Leimer

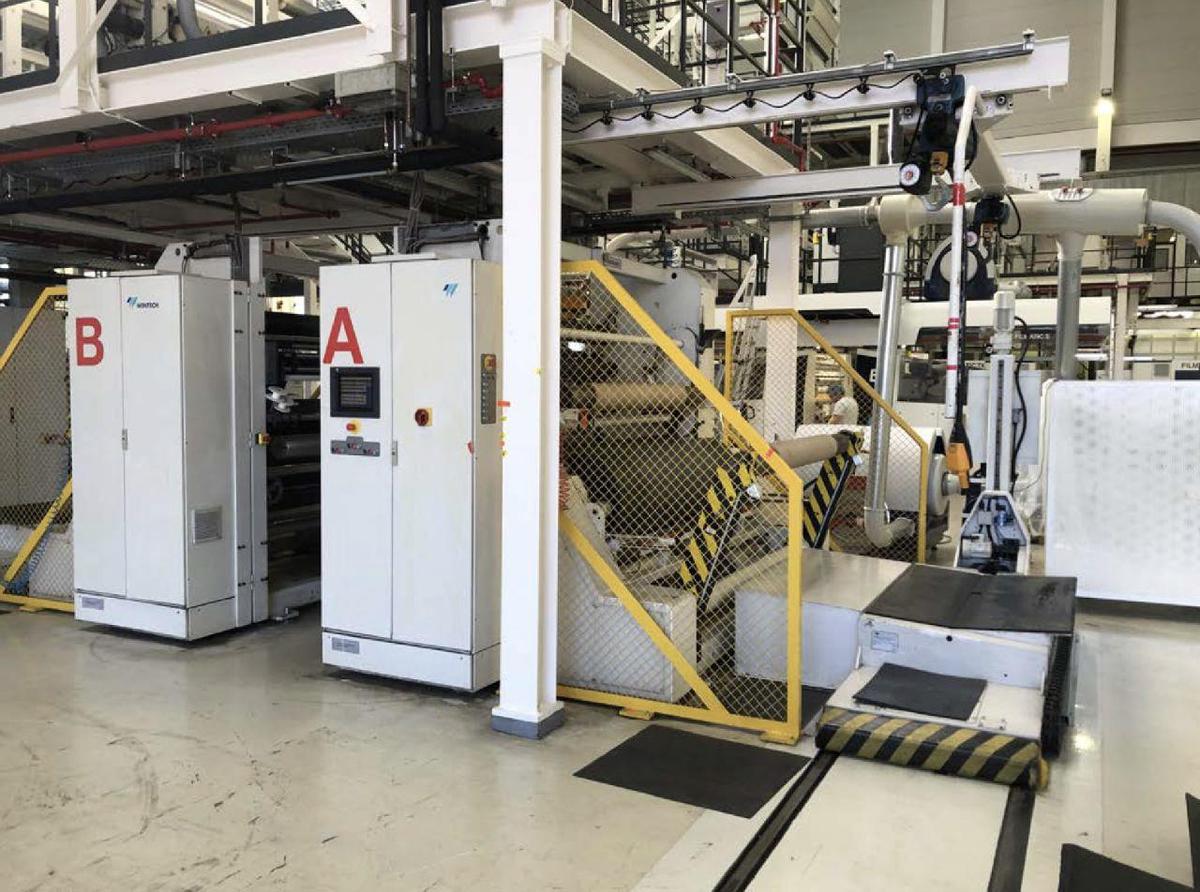

Rewinder Type: Double back to back
Rewinder description: Wintech
Additional Information:
Tower structure included
Kiefel
Coex 5
| ID | 2085 |
|---|---|
| Type | Blown film lines |
| Year of construction | 2001 |
| In production | YES |
| Available | |
| Extruder | A: 70 mm -29D x B: 50 mm-25D x C: 50 mm-25D x D: 50 mm - 25 D x E; 80 mm- 25D |
| Die | 500 |
| Working width [mm] | 2000 |
| Rewinder | Double |
| Working width - rewinder [mm] | 2000 |
| Calibrating basket | Reinhold SRK 200/ 9-6 |
| Output max. | 500 |
