Kiefel

Number of layers: 3
Film structure: ABC
Material: LDPE, LLDPE, MDPE
Film Width: 2200
Output (Kg/h): 600 depending on material
Extruder 1 Layer ref: : A
Screw diam 1: 70mm
Description 1: 26L/D .Gravimetric dosing unit 5 components. Motor AC 75Kw. Hydraulic
screen changer
Extruder 2 Layer ref: : B
Screw diam 2: 100mm
Description 2: 26L/D.Gravimetric dosing unit 4 components. Motor AC 145Kw. Hydraulic
screen changer
Extruder 3 Layer ref: : C
Screw diam 3: 70mm
Description 3: 26L/D.Gravimetric dosing unit 5 components. Motor AC 75Kw. Hydraulic
screen changer

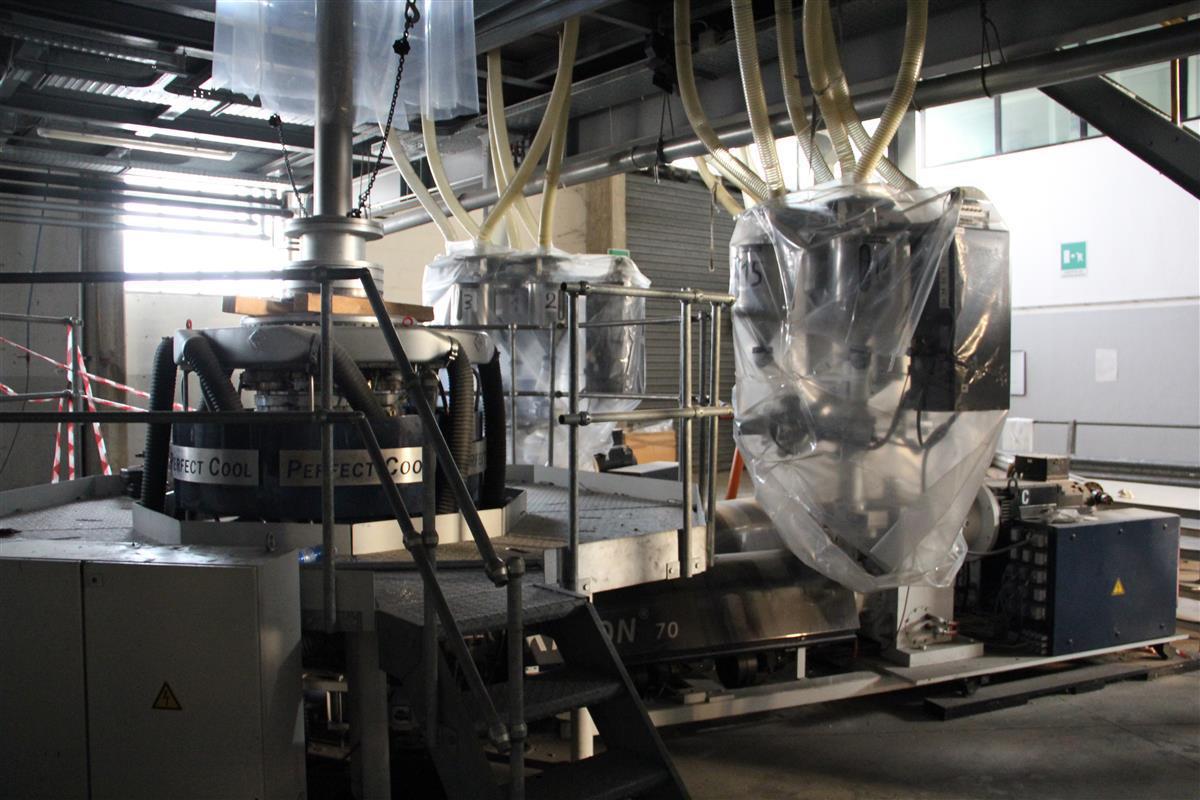

Head description: Kirion 250/500-3 suitable for die diam 250-500mm . Cool ring Perfect
cool . IBC
Die diam (mm): 400mm and 500mm
Thickness controll system: Yes automatic Profile Control C2
Bubble cage: Additional ultrasonic bubble control N2200-C including ultrasonic web
detector. Motorized adjustment
Take off unit: Rotating T2200, Zero Touch 2200 air cushion
Corona treatment: Double side
Web guide: Yes
Rewinder Type: Double back to back
Rewinder max reel diameter: 1200
Rewinder description: Kirion W 2200 M2 Center and surface driven. Possibility of gap and
contact winding. tension 40-400N. Mechanical speed 200M/min. S wrap cooling unit.
Automatic reels extraction and new shaft loading system
Additional Information:
Edge trim system. Inline slitting system

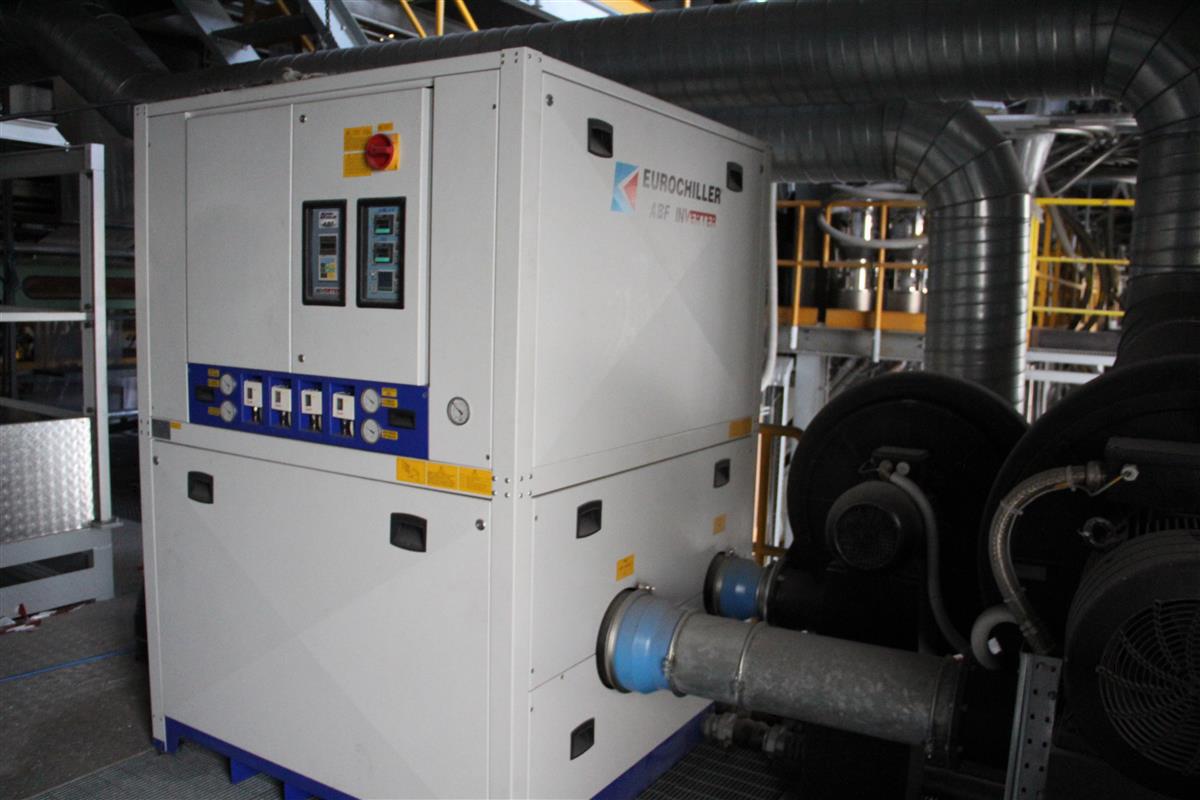

Twin chiller for Kirion C
Machine is stopped since long time and require some maintenances
