Film structure: ABC
Material: LDPE, LLDPE, MDPE Others in blends
Film Width: 2300
Output (Kg/h): 400

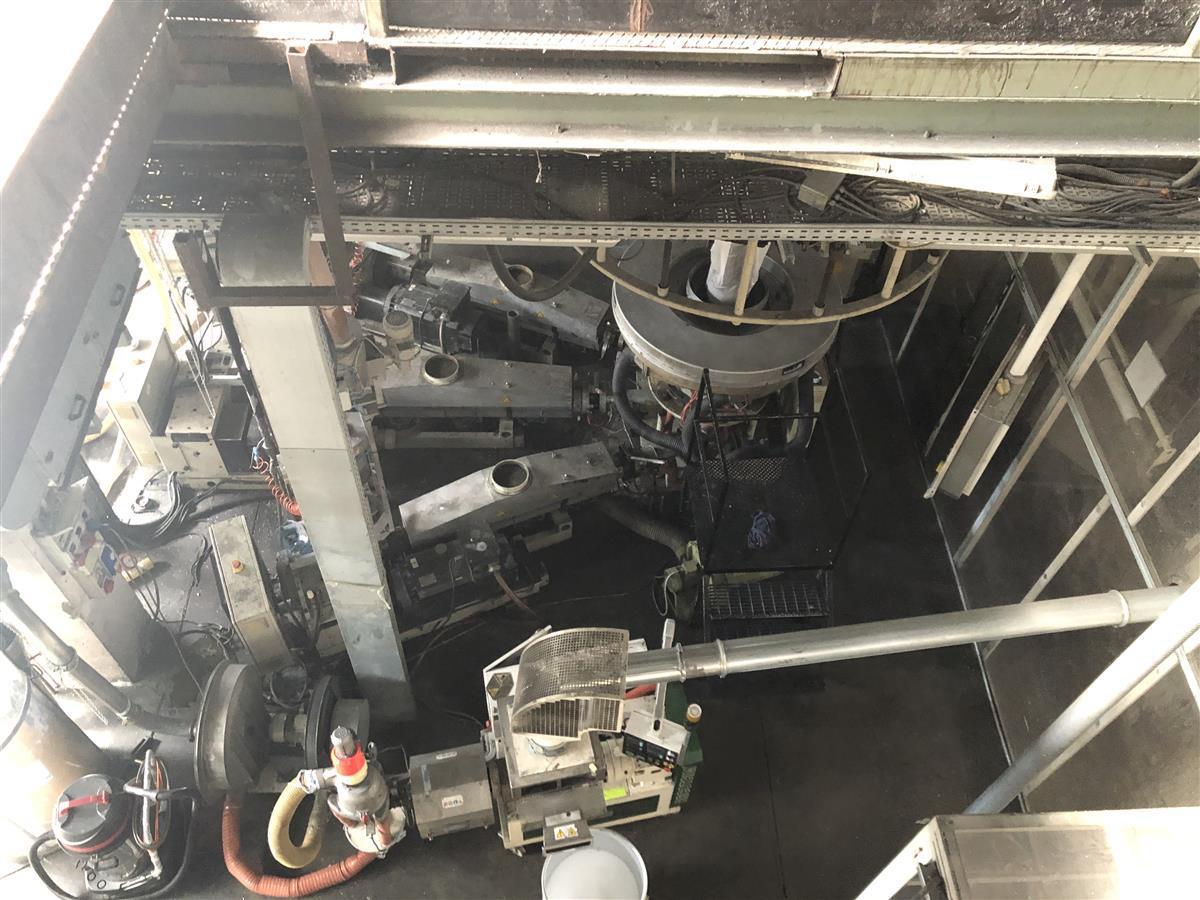

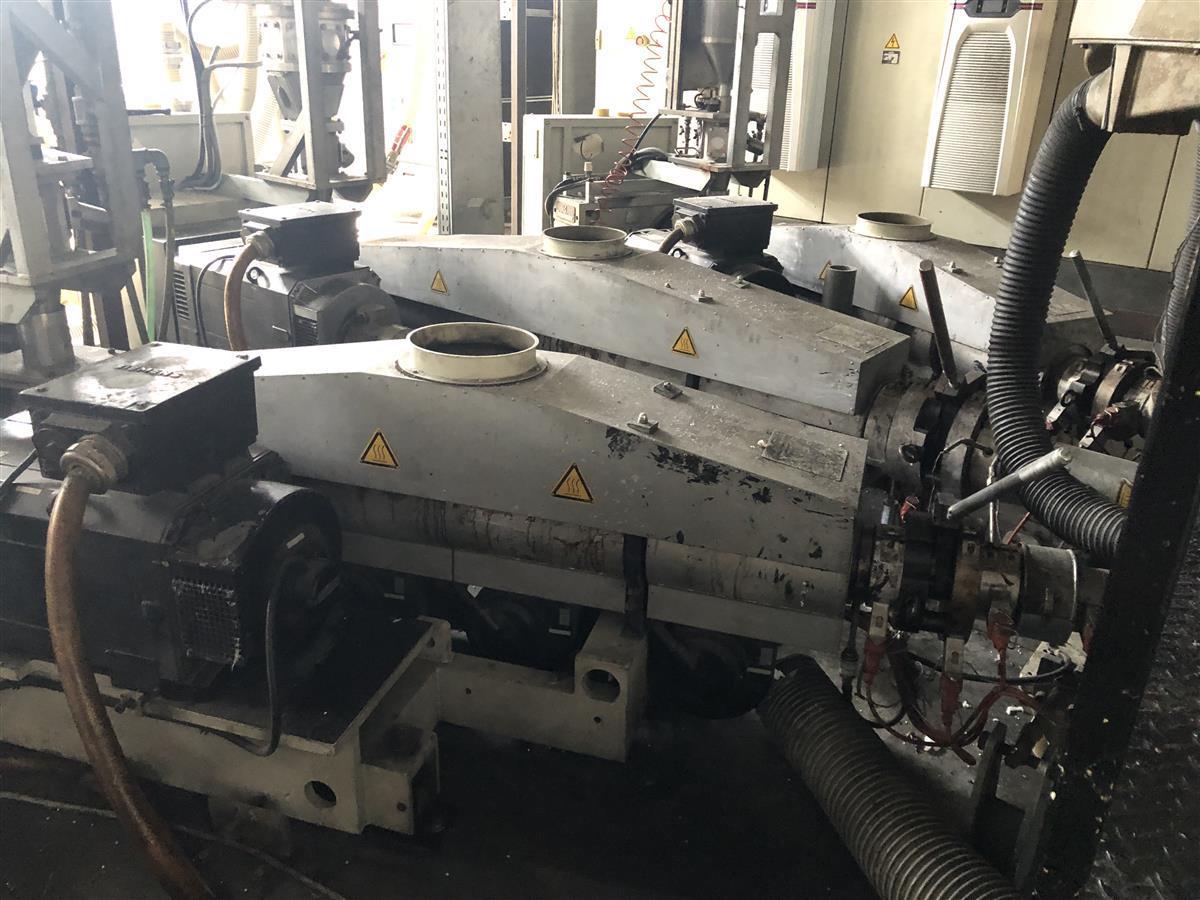

Extruder 1 Layer ref: : A
Screw diam 1: 60

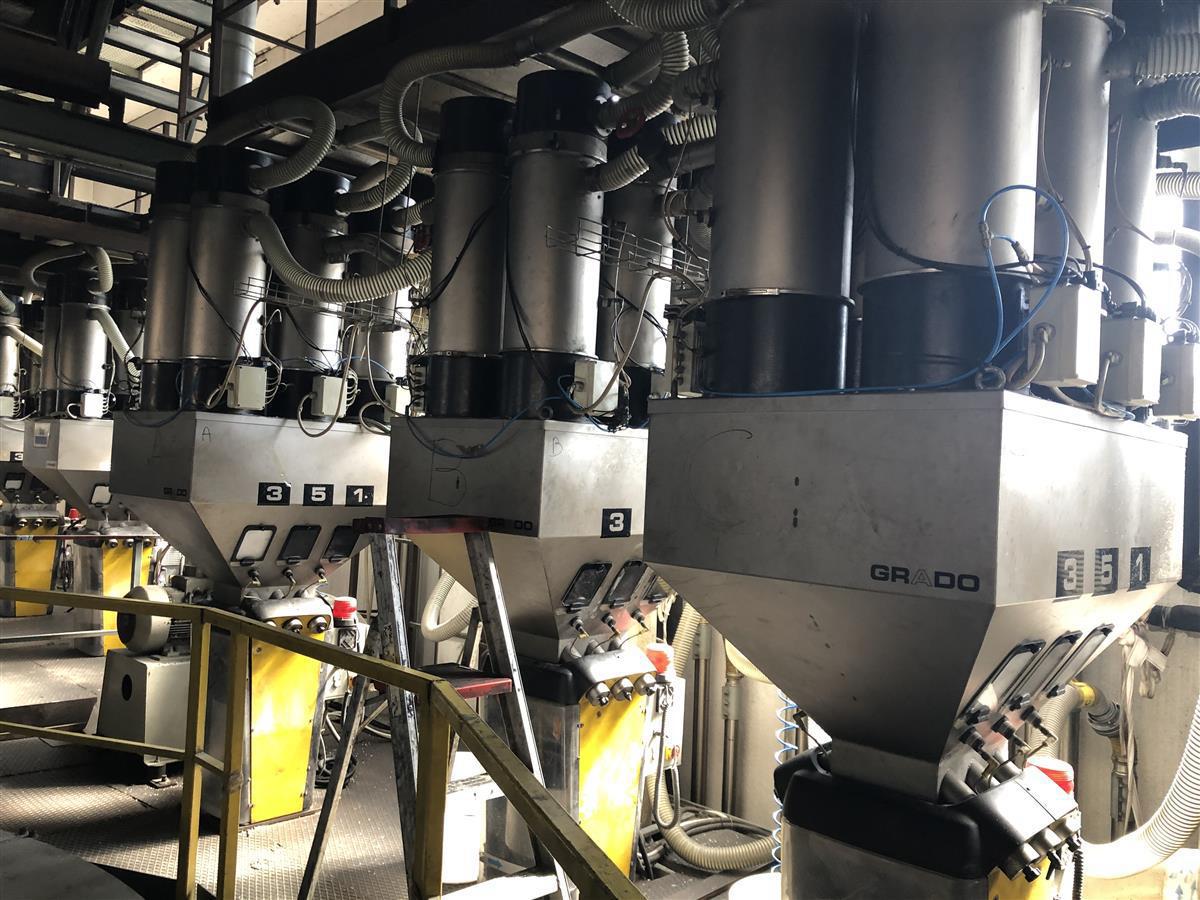

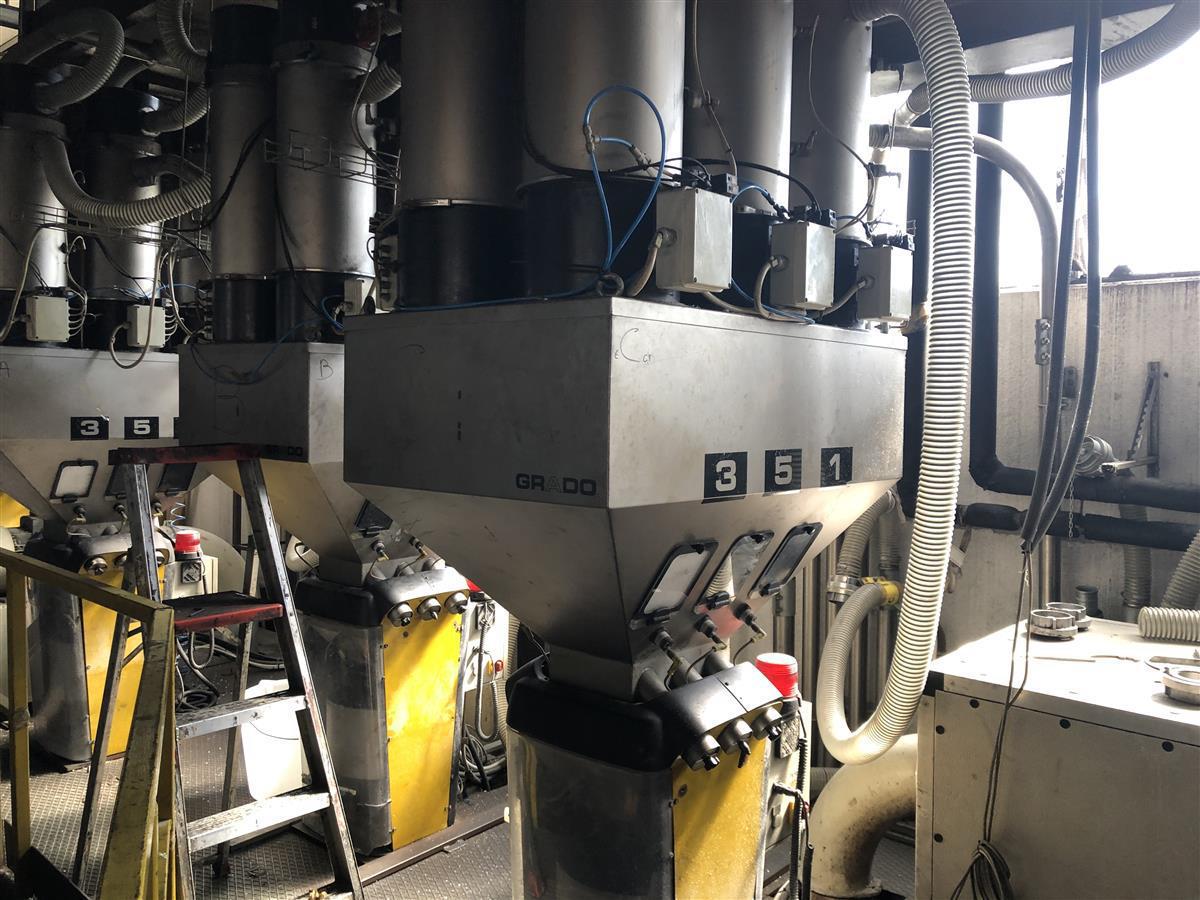

Description 1: AC motor 60 kW , Gravimetric dosing system Doteco 5 comp
Extruder 2 Layer ref: : B
Screw diam 2: 80
Description 2: AC motor 117 kW , Gravimetric dosing system Doteco 5 comp
Extruder 3 Layer ref: : C
Screw diam 3: 60
Description 3: AC motor 60 kW , Gravimetric dosing system Doteco 5 comp
Die diam (mm): 400 mm + 280mm
Thickness controll system: Automatic thickness profile control

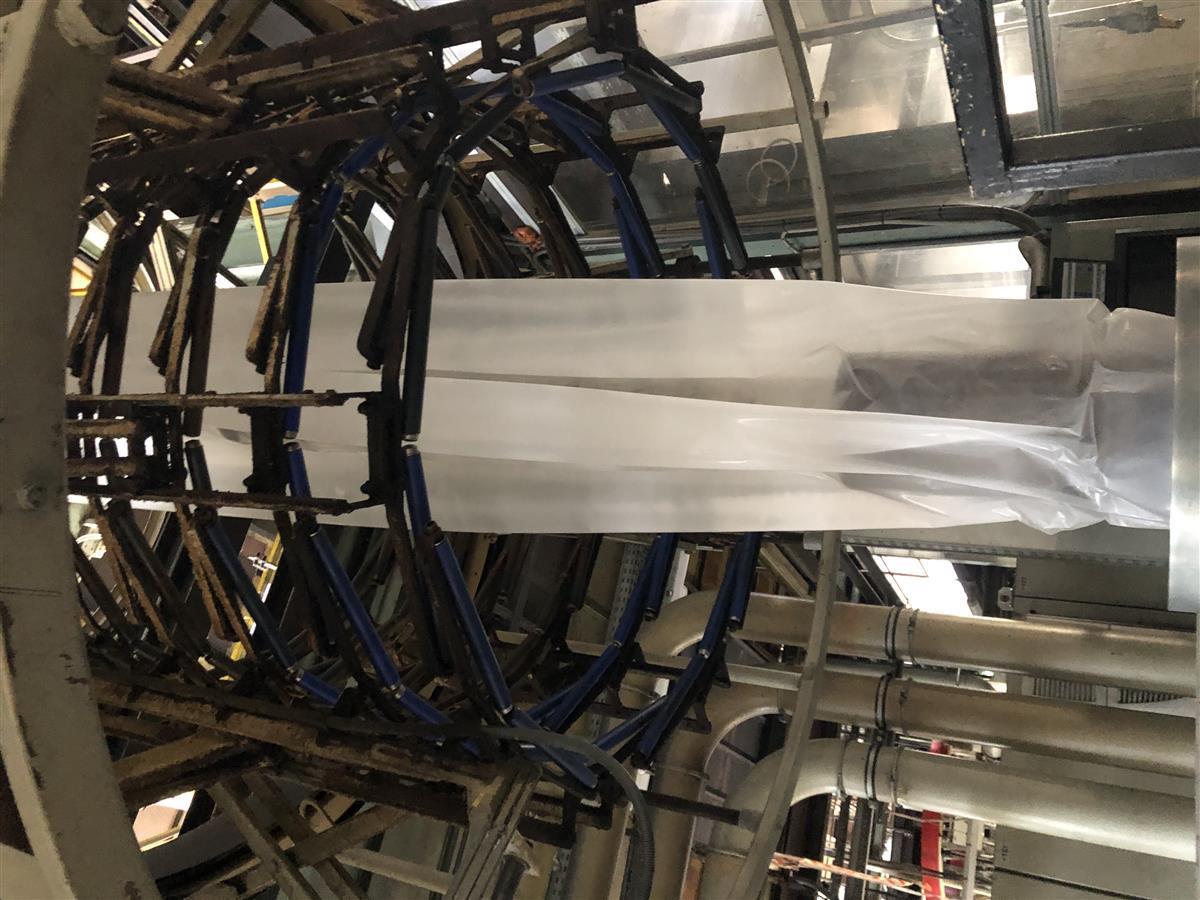

Bubble cage: Motorized
Panel for gussets: Yes

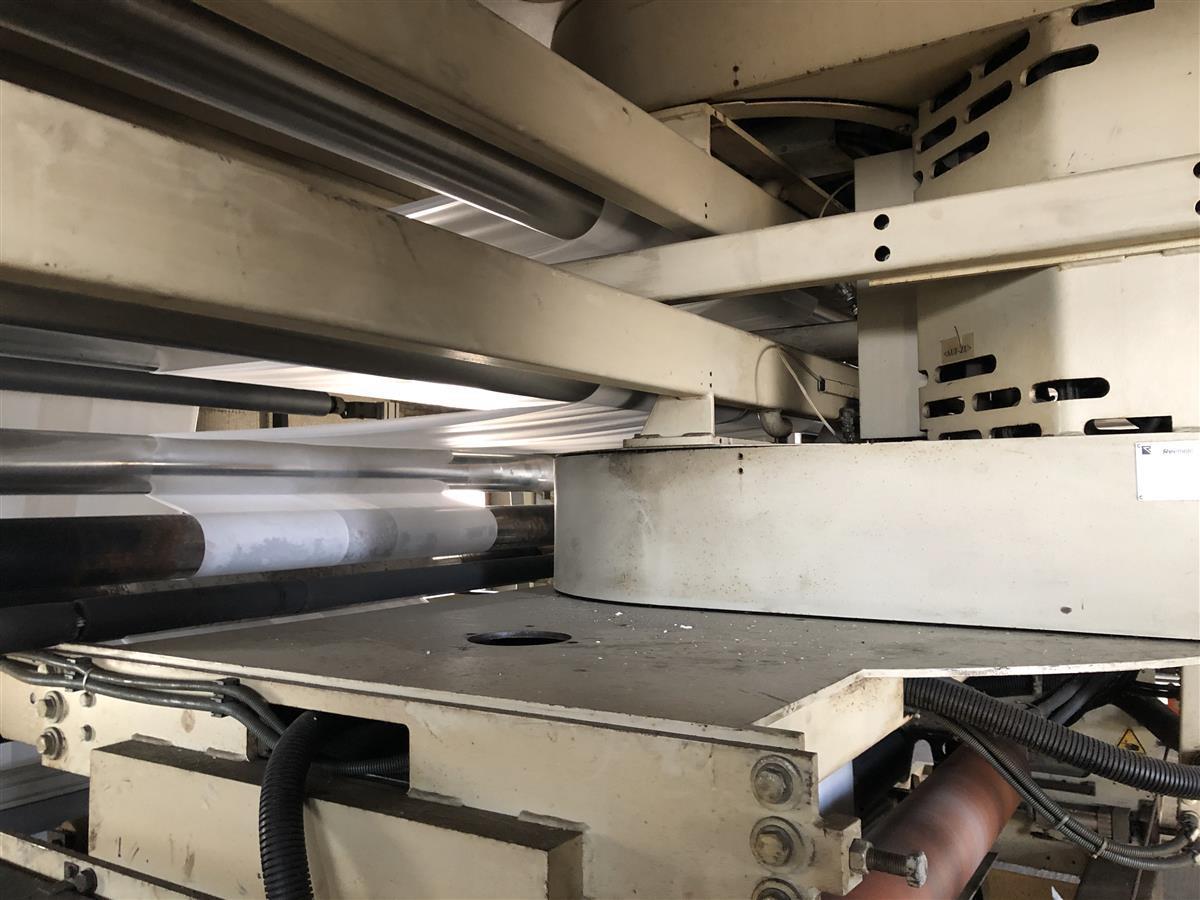

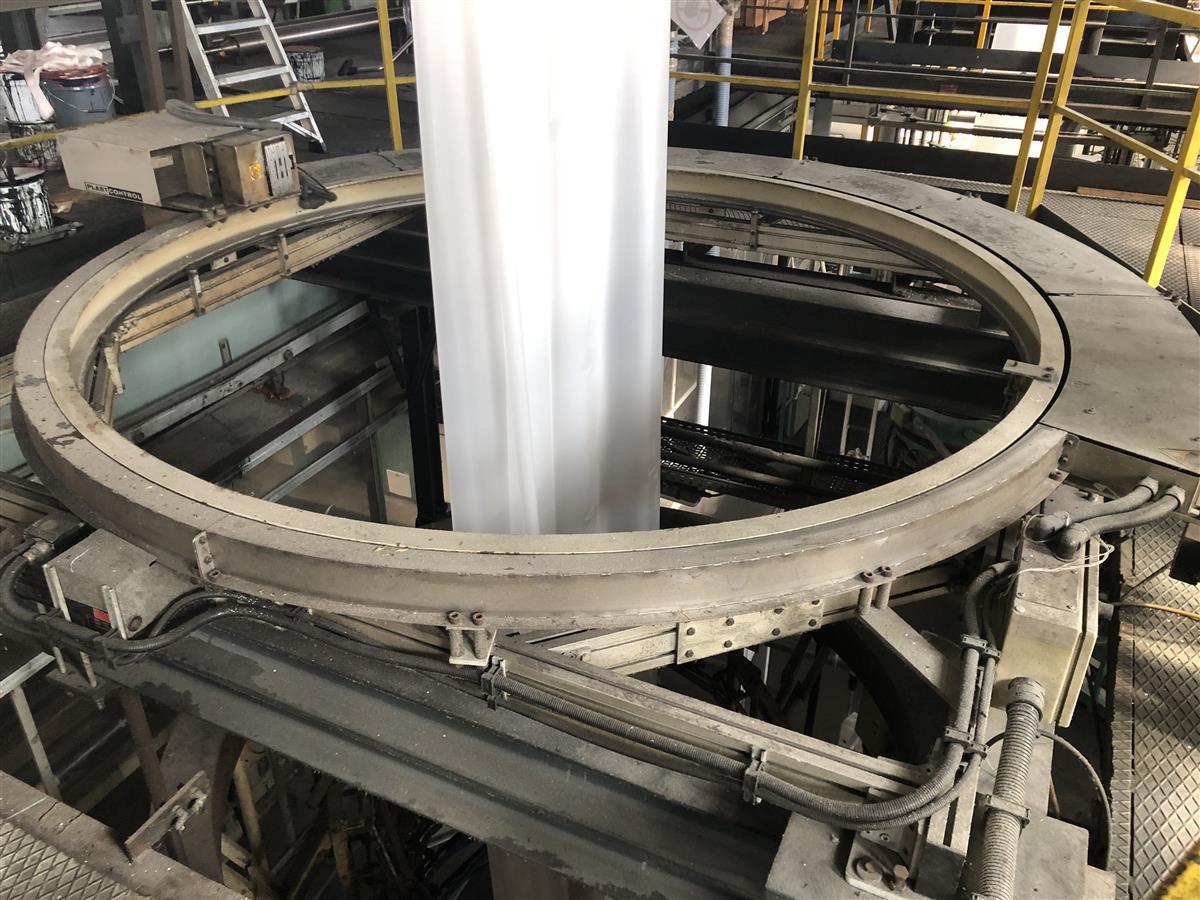

Take off unit: oscillating take off unit Reinhold wide 2300 mm with gusseting panels
Corona treatment: MERO
Web guide: E+L

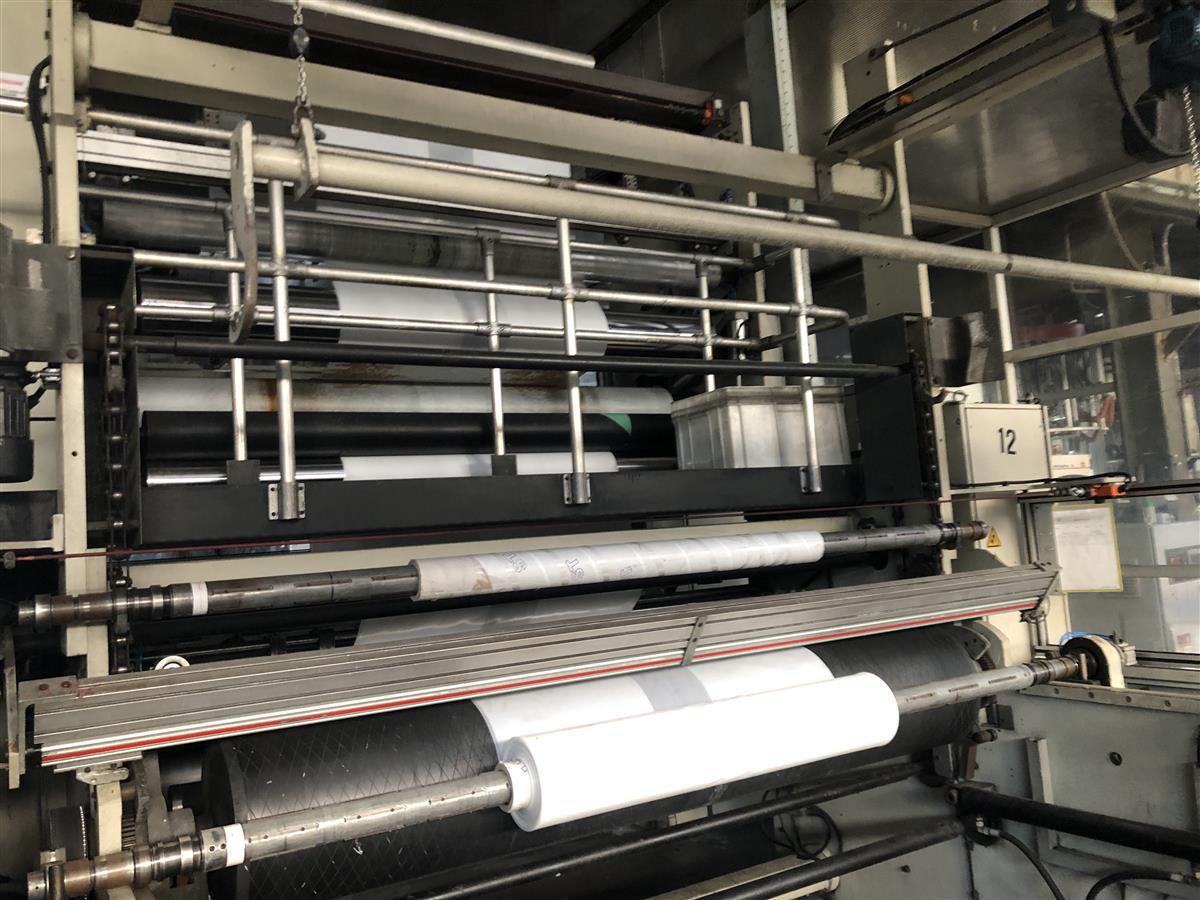

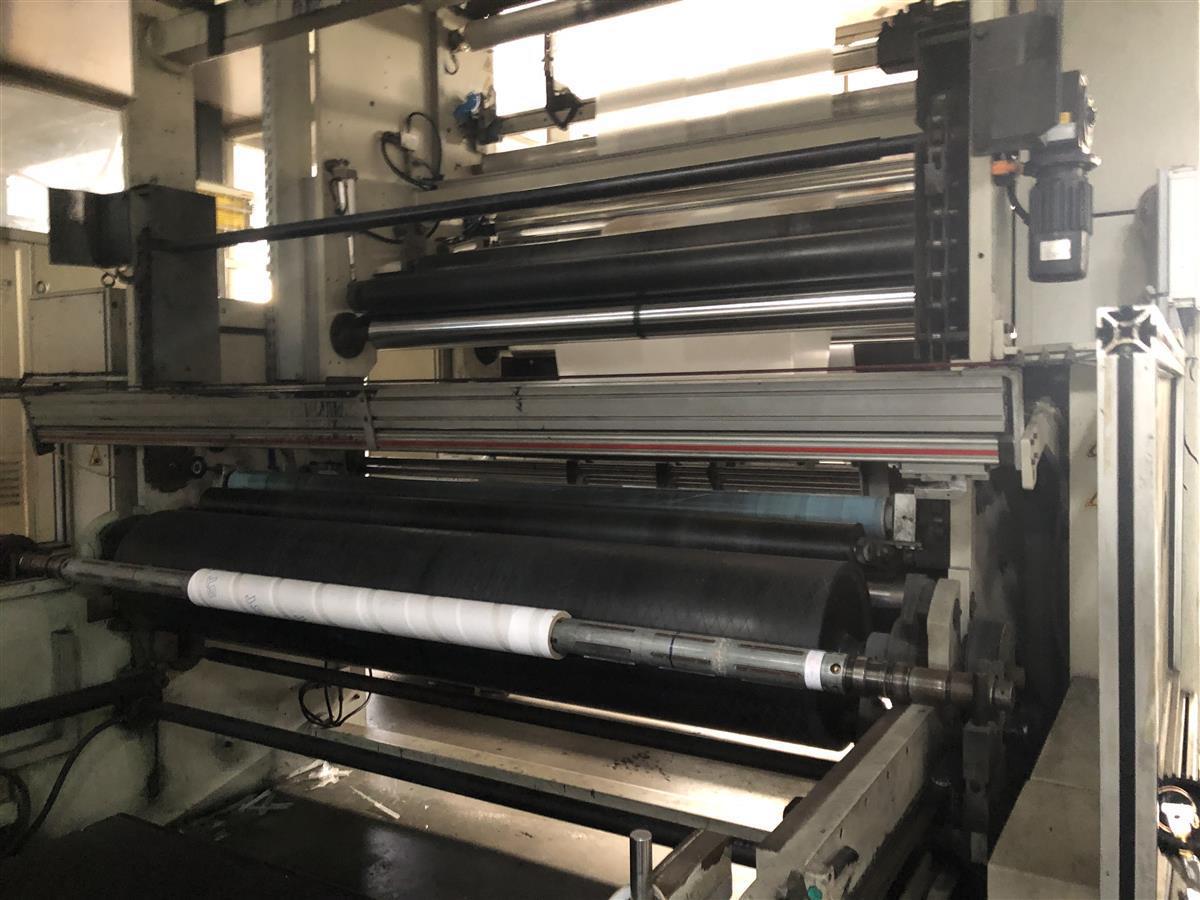

Rewinder Type: Double back to back
Rewinder max reel diameter: 1000
Rewinder description: Model UFA 01 A1
Additional Information:
Edge trim shredding Exact
Chiller Eurochiller
Tower not inlcuded
Reifenhauser
3 layers
| ID | 2088 |
|---|---|
| Type | Blown film lines |
| Year of construction | 2003 |
| In production | YES |
| Available | |
| Extruder | A: 60 mm x B: 80 mm x C: 60 mm |
| Die | 400 |
| Working width [mm] | 2300 |
| Max. reel diameter - rewinding | 1000 |
| Rewinder | Double |
| Working width - rewinder [mm] | 2300 |
| Output max. | 400 |
