SML

Number of layers: 5
. Overhaul/renovation: yes, recent revamp to part of controls
. Film structure: ABCDE
. Material: Stretch film LLDPE
. Film width (mm): 2500
. Speed (m/min): Mech speed 600 mpm- net speed at rewinder 550 mpm
. Output (Kg/h): Nominal capacity 3400 kg /h - Max net capacity at rewinder 2300 kg/h

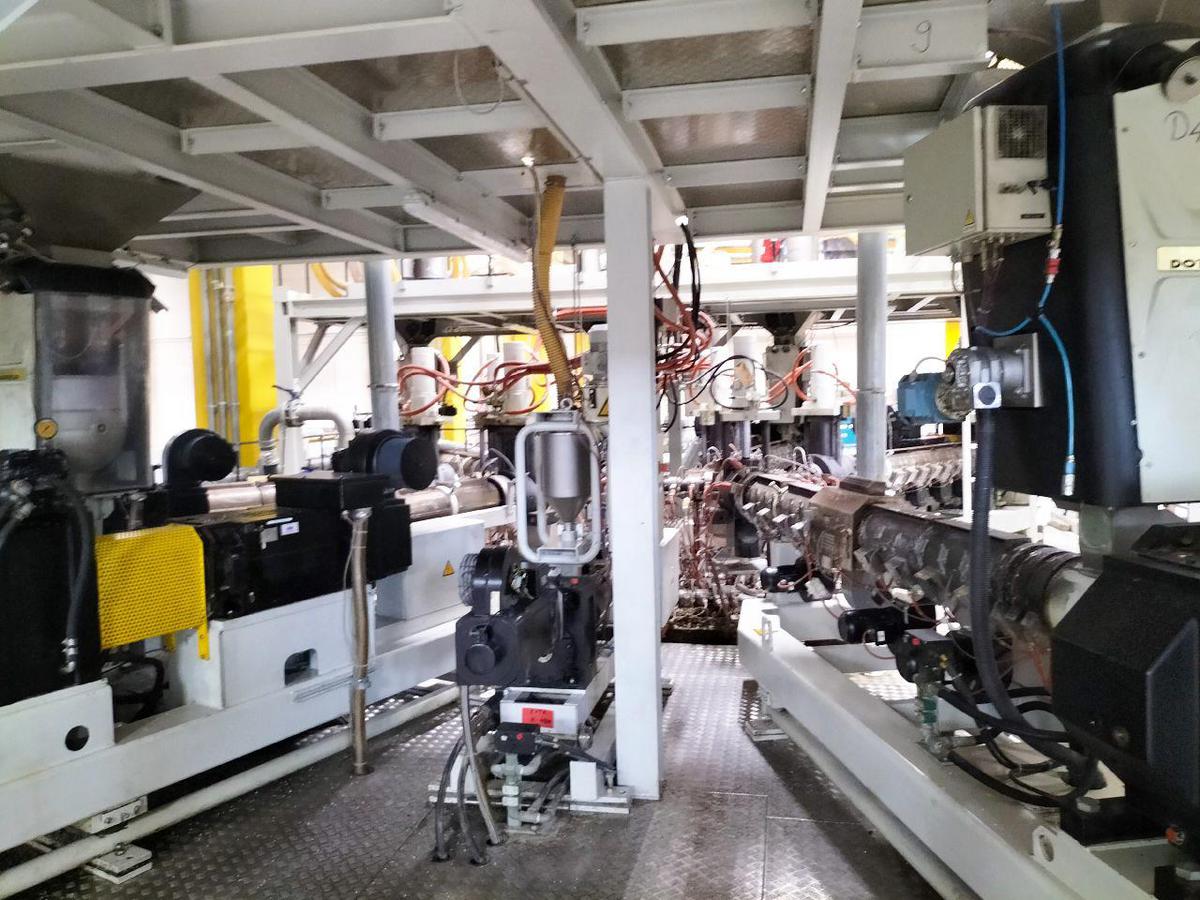

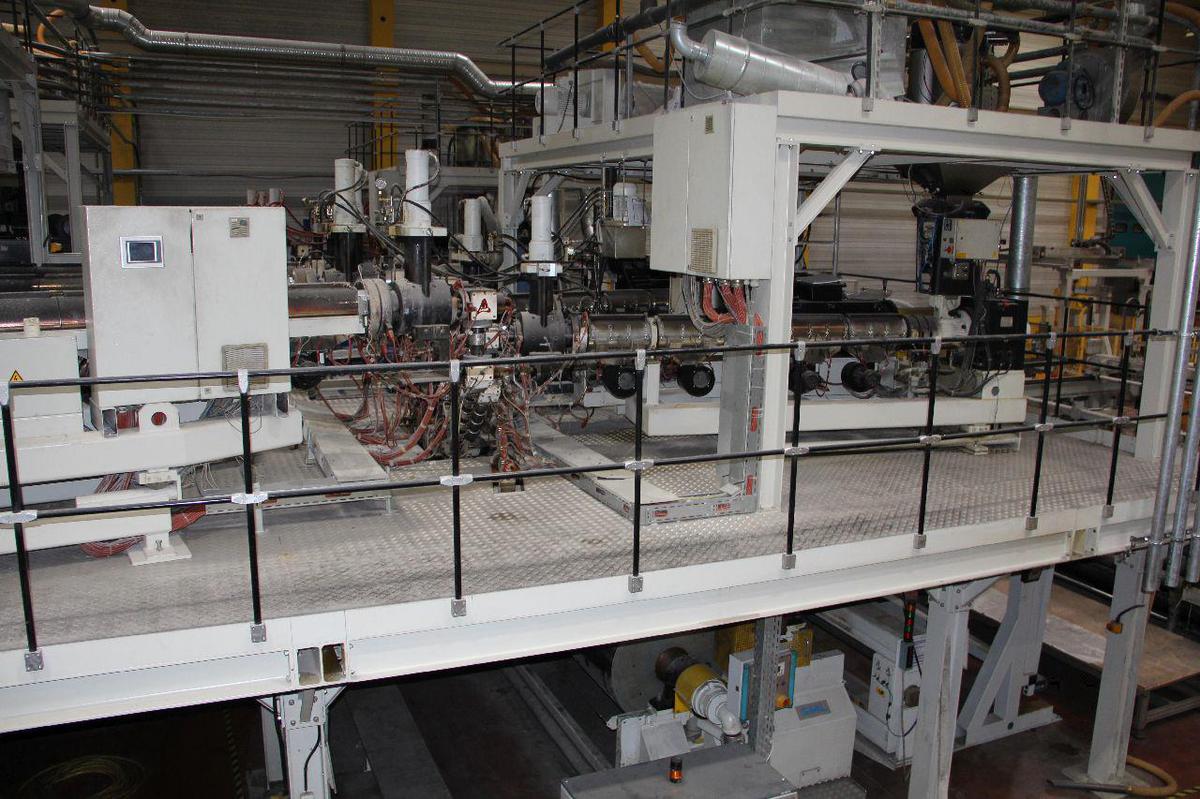

. Extruder 1 Layer ref: : A
. Screw diam 1: 90mm
. Description 1: Gravimetric dosing units Doteco 2Comp.
. Extruder 2 Layer ref: : B
. Screw diam 2: 120mm
. Description 2: Gravimetric dosing units Doteco 4 Comp.AC motor, hydraulic screen
. changer
. Extruder 3 Layer ref: : C
. Screw diam 3: 120mm
. Description 3: Gravimetric dosing units Doteco 4 Comp. AC motor, hydraulic screen
. changer
. Extruder 4 Layer ref: : D
. Screw diam 4: 120mm
. Description 4: Gravimetric dosing units Doteco 3 Comp.AC motor, hydraulic screen
. changer
. Extruder 5 Layer ref: : E
. Screw diam 5: 90mm
. Description 5: Gravimetric dosing units Doteco 2 Comp.AC motor, hydraulic screen
. changer
. Head description: Automatic Die head with Internal deckling, Eltex edge pinning,
. Die width (mm): Gross width 3100 - 2100 mm
. Chill roll unit: Double chill roller
. Thickness controll system: Yes Web guide: Oscillating frame
. Rewinder description: Turret rewinder for machine reels and jumbo
. Additional Information:

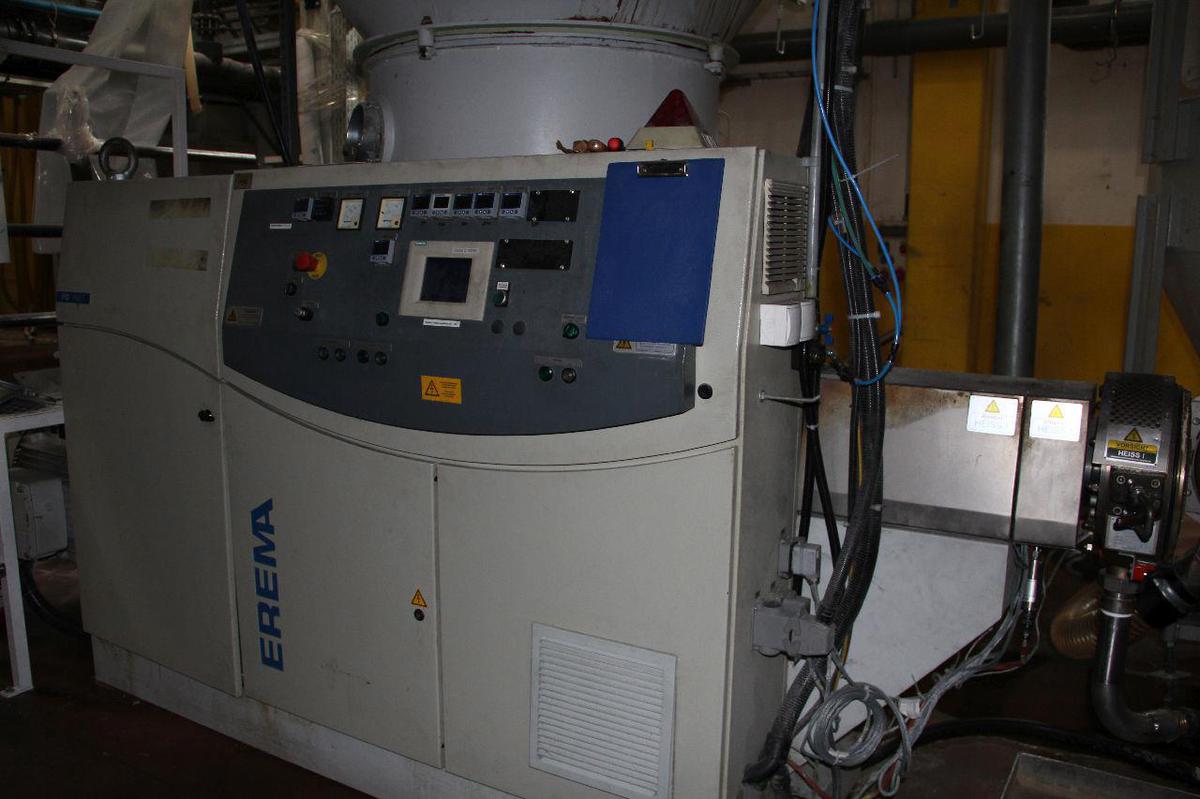

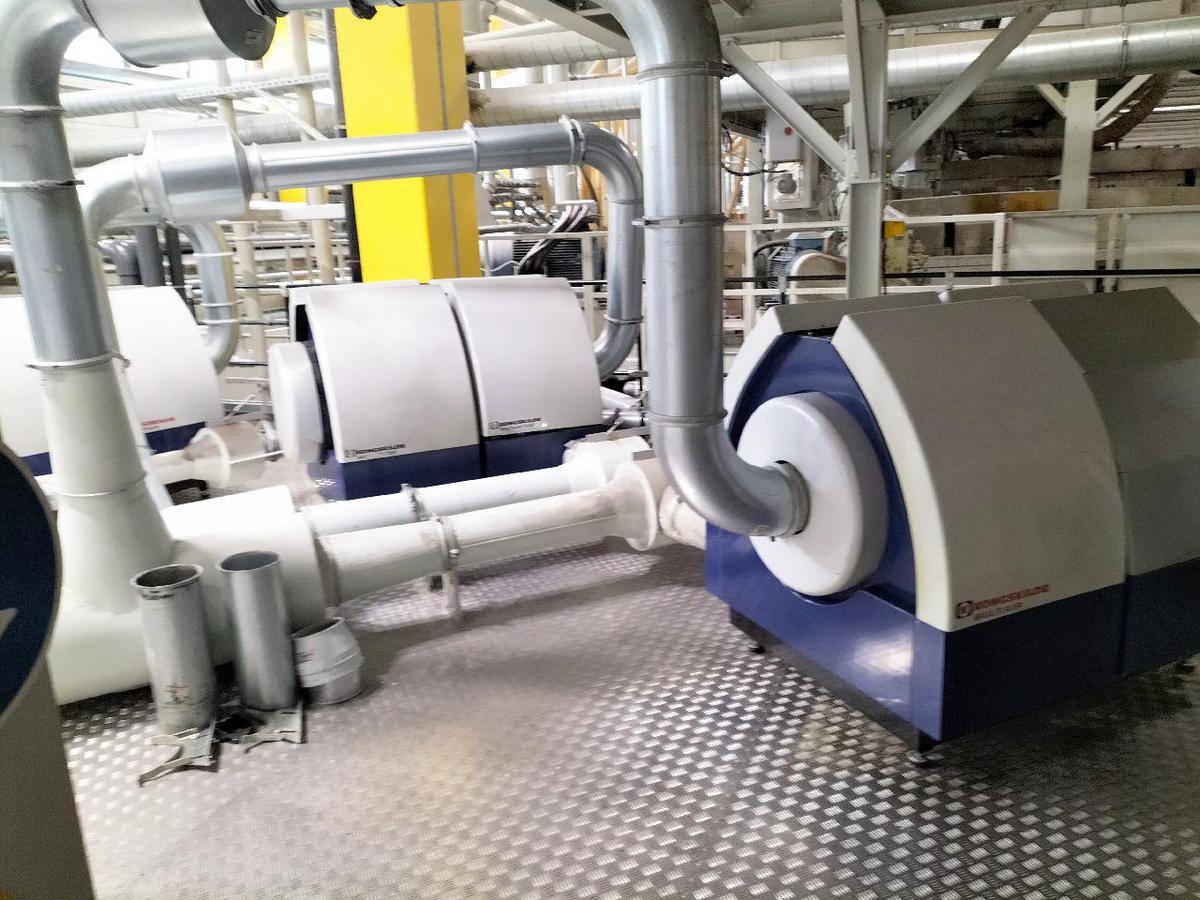

. Regrinder for edges and Erema Regranulator
.
