SML

Number of layers: 7
Material: Stretch film LLDPE
Film width (mm): 2500
Output (Kg/h): Nominal capacity 4600 kg /h Max net capacity at rewinder 2750 kg/h .
Extruder 1 Layer ref: : A
Screw diam 1: 75

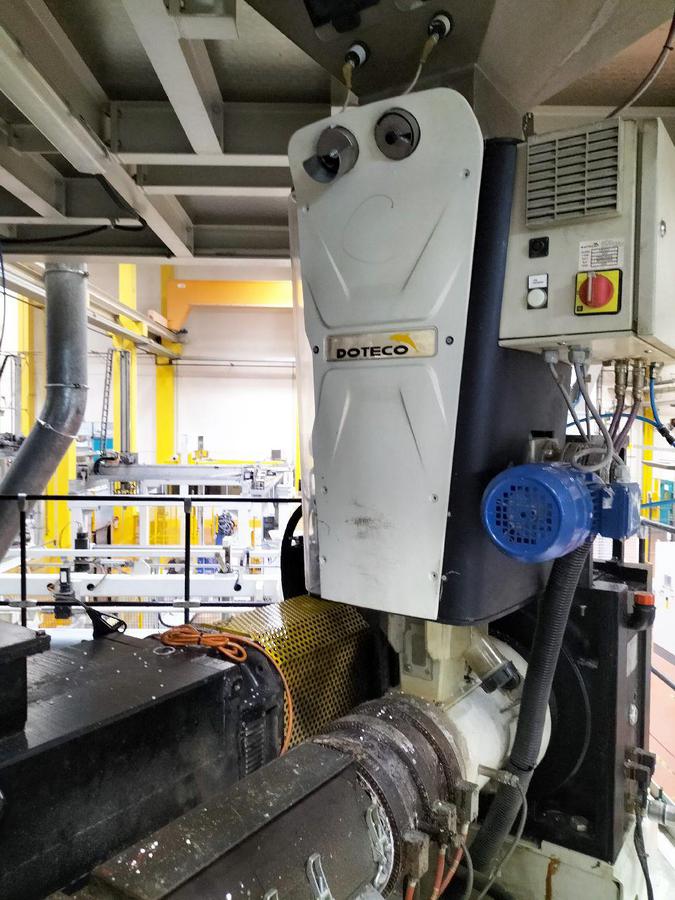

Description 1: Gravimetric dosing units 4 components make Doteco, hydraulic screen
changer. AC motors
Extruder 2 Layer ref: : B
Screw diam 2: 75
Description 2: Gravimetric dosing units 4 components make Doteco, hydraulic screen
changer. AC motors
Extruder 3 Layer ref: : C
Screw diam 3: 75
Description 3: Gravimetric dosing units 4 components make Doteco, hydraulic screen
changer. AC motors
Extruder 4 Layer ref: : D
Screw diam 4: 90
Description 4: Gravimetric dosing units 4 components make Doteco, hydraulic screen
changer. AC motors
Extruder 5 Layer ref: : E
Screw diam 5: 75
Description 5: Gravimetric dosing units 4 components make Doteco, hydraulic screen
changer. AC motors
Extruder 6 Layer ref: : F
Screw diam 6: 75
Description 6: Gravimetric dosing units 4components make Doteco, hydraulic screen
changer. AC motors
Extruder 7 Layer ref: : G
Screw diam 7: 75
Description 7: Gravimetric dosing units 4 components make Doteco, hydraulic screen
changer. AC motors
Head description: Automatic thickness profile control via thermal bolts. Internal deckling
system,
Die width (mm): 3100 mm with Internal deckling
Chill roll unit: Double chill roller
Thickness controll system: Automatic thickness control system. double thickness gauge
type with beta rays
Web guide: Oscillating frame
Rewinder max reel diameter (mm): max single reel weight 80 Kg
Rewinder description: Winder for machine rolls
Additional Information:
Nominal capacity 4600 kg /h
Max net capacity at rewinder 2750 kg/h
Thickness range 12- 70 micron
Complete recycling system including :
3 Kongskilde Grinders for edge trims

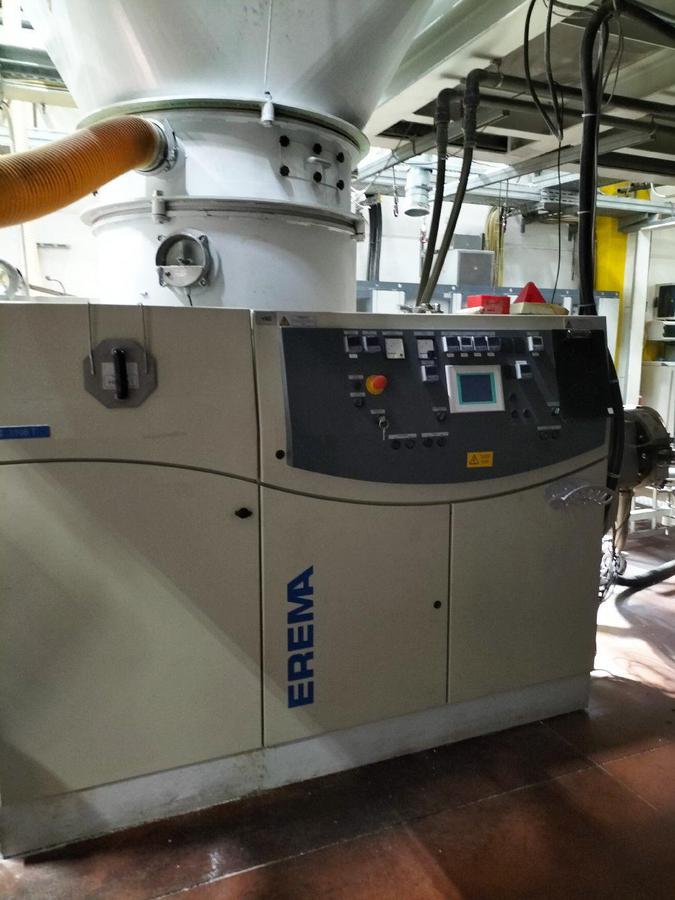

EREMA recycling regranulation unit
Additional extruder. 8 for recycled material supplied by Erema unit
