- Gearless machine
- Modernization of drive systems has been implemented
- Video inspection system BST Eltromat
- 2 x edge guide control
- Electric ink pumps
- Thermocontrol unit
- Viscosimeters – Fasnacht FKR-S4
In 2025, a retrofit costing 150K EUR
The retrofit included:
32 NEW RTA MOTORS WITH ENCODERS FOR PRINTING UNIT (1-8)
Mechanical adpter for new motors
KeTop C20e+Cavo+Magnete KEBA keyboard
1 SAFE CPU for safety management of the new motors
Ewon device for remote connection
Pre-wired cables kit
Software update
Uteco

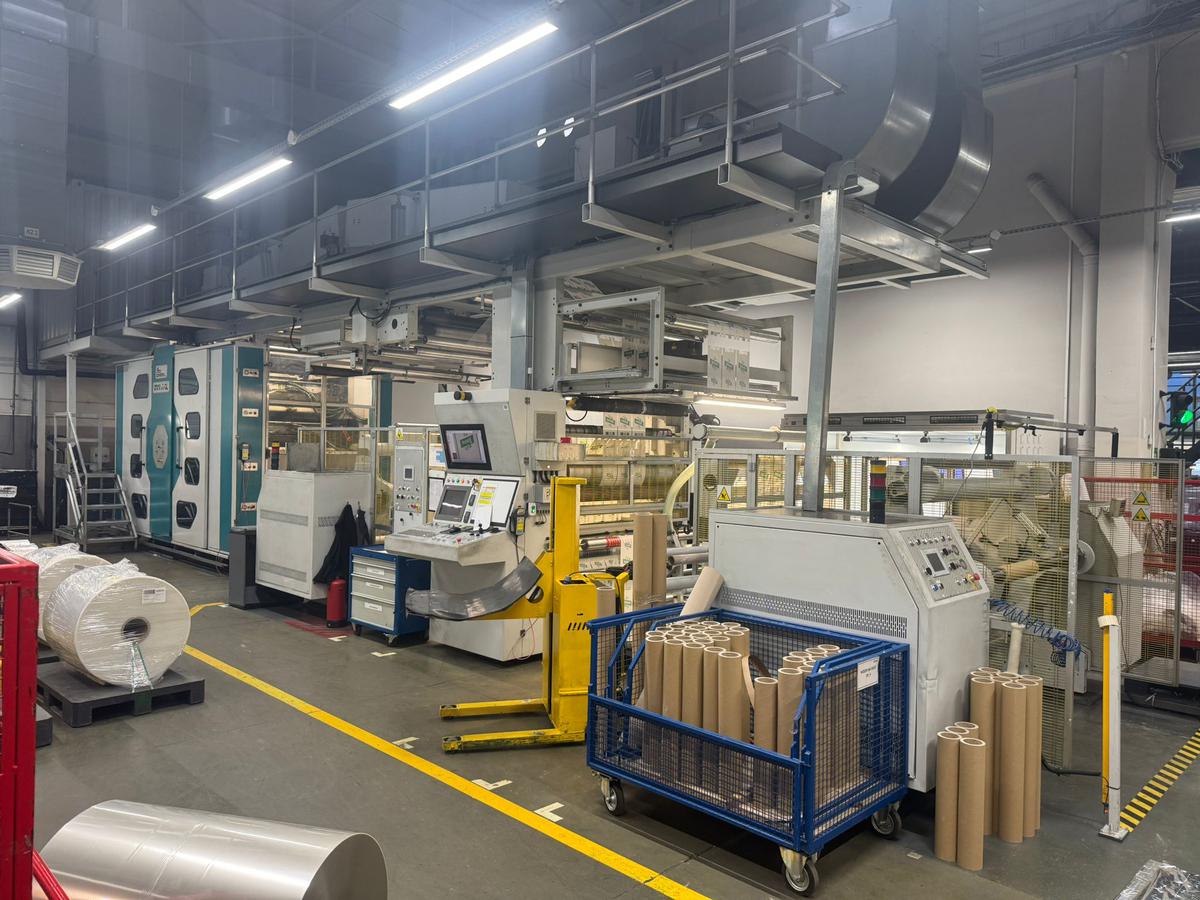

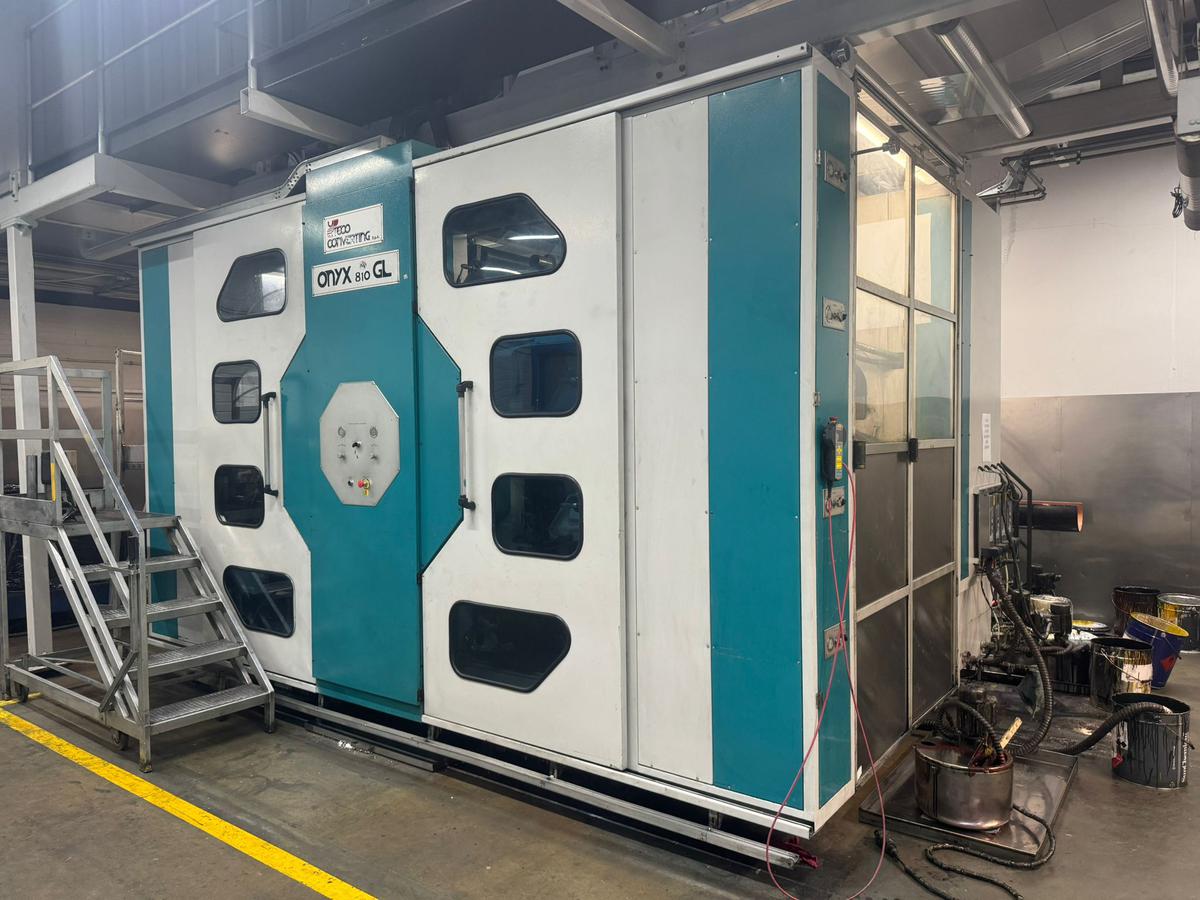

Onyx 810 GL
| ID | 2114 |
|---|---|
| Type | Flexo CI |
| Year of construction | 2007 |
| In production | YES |
| Available | |
| Number of printing units | 8 |
| Web width max. | 1450 |
| Printing width max. | 1400 |
| Printing repeat min. | 400 |
| Printing repeat max. | 1070 |
| Speed max. | 400 |
| Drying | Electric |

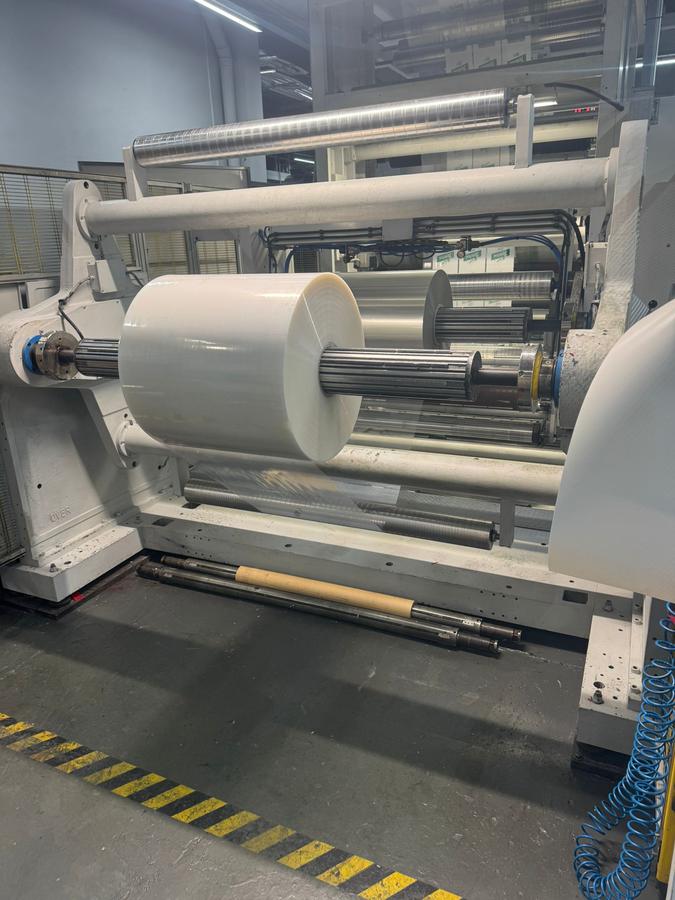

| Unwinding | Automatic |
| Max. reel diameter - unwinding | 1000 |
| Rewinding | Automatic |
| Max. reel diameter - rewinding | 1000 |

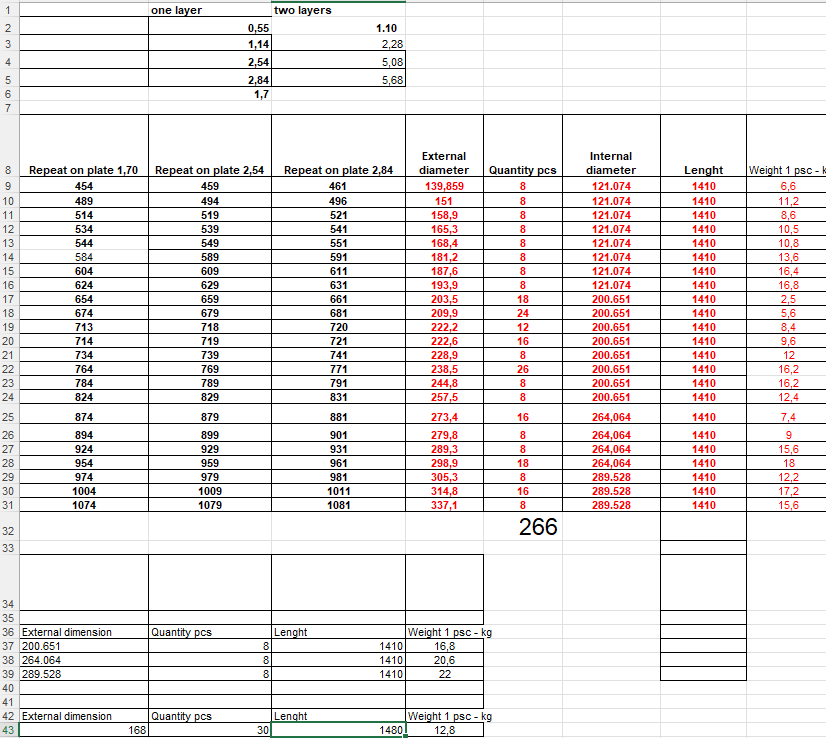

| Anilox rollers (sleeves) | 266 |
| Printing cylinders (sleeves) | 24 |
