Gear machine.
Water based ink.
Material thickness : 40 – 150gsm.
Plate thickness – 0.112.
Reel core diameter – 76mm
Camera based BST Eltromat system to monitor defects, quality, register
External shoulder length 550mm larger than the standard model.
Geared module 10mm, helical 3.183 – pressure angle: 20⁰
Electrical power Volts 200/400v (380v) – 60HZ – 3 phase.
Installed power volts 298.5kw-current 5AMP.
Line switch rated for 630AMP.
CV.29.main motor.

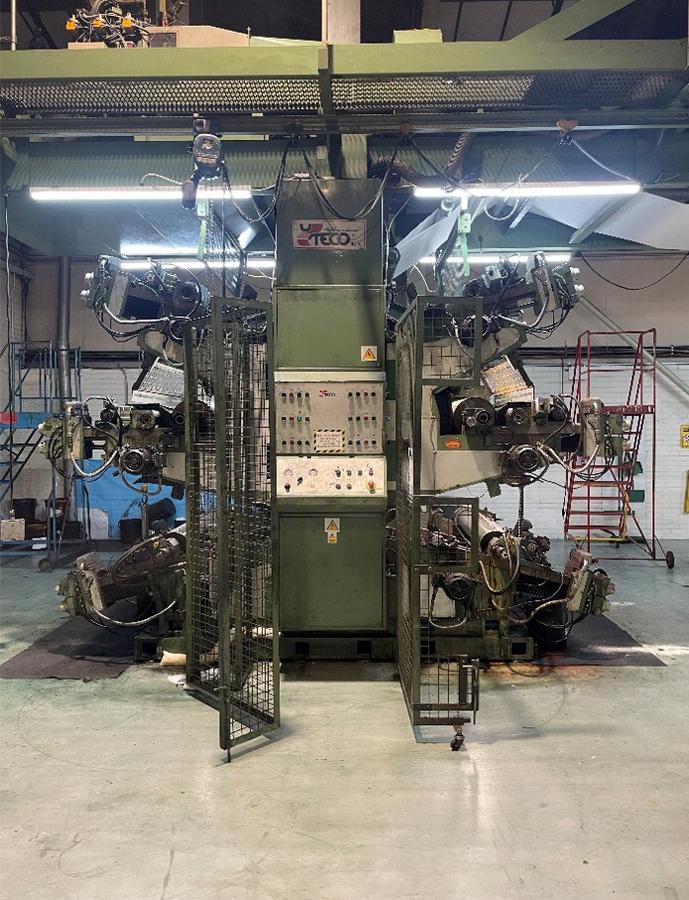

Uteco

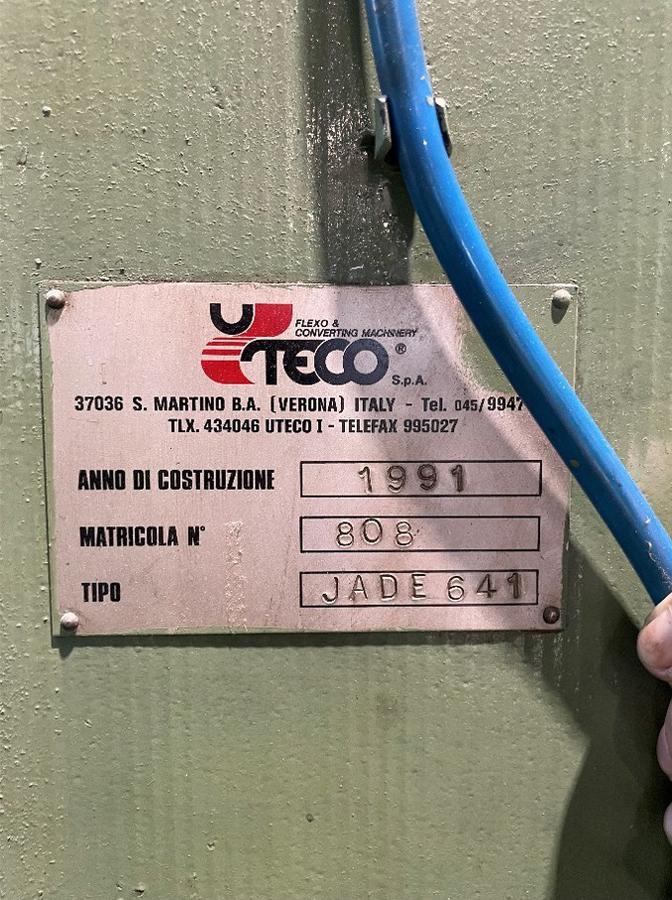

Jade 641 (808) - Mod 130
| ID | 2125 |
|---|---|
| Type | Flexo CI |
| Year of construction | 1991 |
| In production | YES |
| Available | |
| Number of printing units | 6 |
| Web width max. | 1350 |
| Printing width max. | 1300 |
| Printing repeat min. | 400 |
| Printing repeat max. | 1500 |
| Speed max. | 300 |
| Drying | Gas |

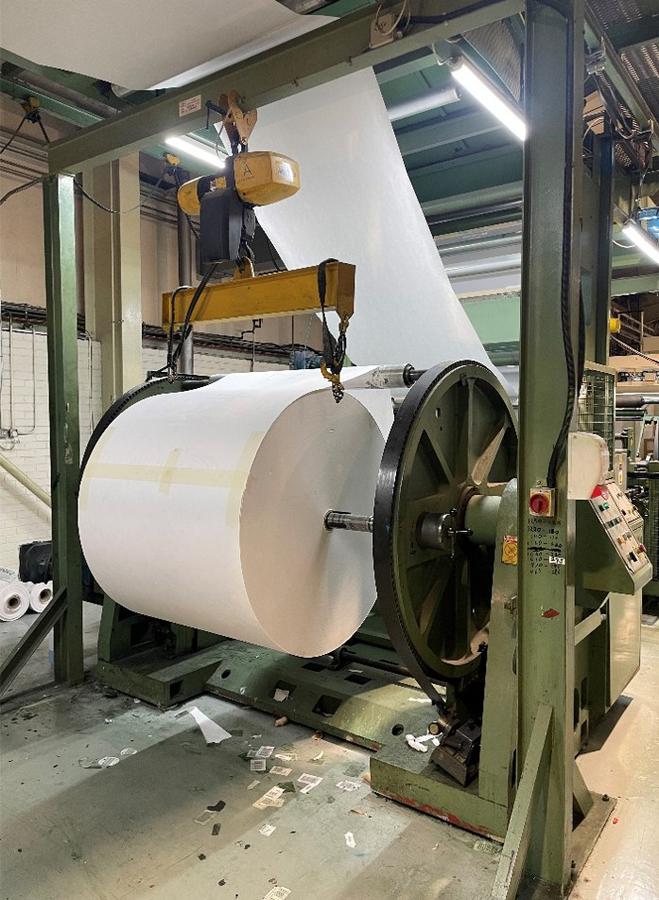

| Unwinding | Double |
| Max. reel diameter - unwinding | 1300 |
| Rewinding | Double |
| Max. reel diameter - rewinding | 1300 |
| Printing cylinders (sleeves) | 48 |
