Gear machine
Gear pitch: 10 mm

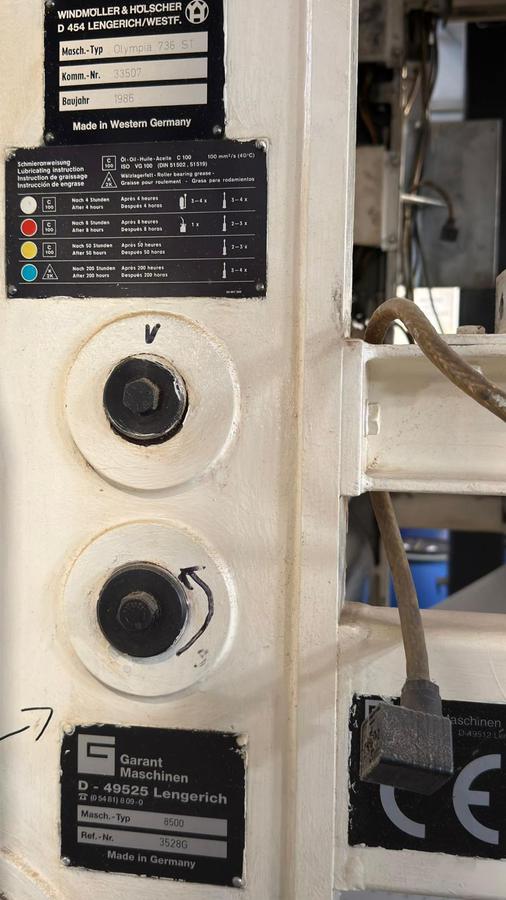

Refurbished by Garant with newer technology
Color change modification
Electrical panel control replaced with Siemens
BST web guiding system, purchased in 2018
Inspection camera
Section 5 converted into a glue section
Additional guide rollers installed

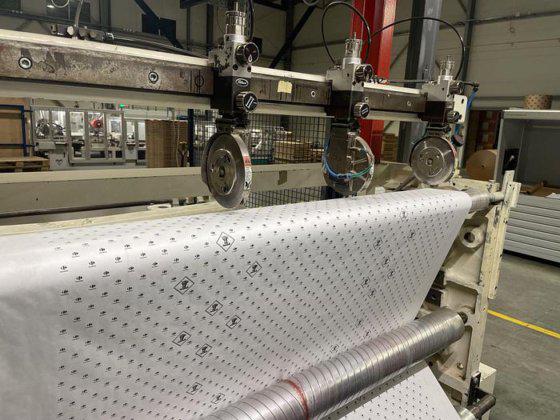

Two guide rollers added in front of the knife section for processing thinner paper

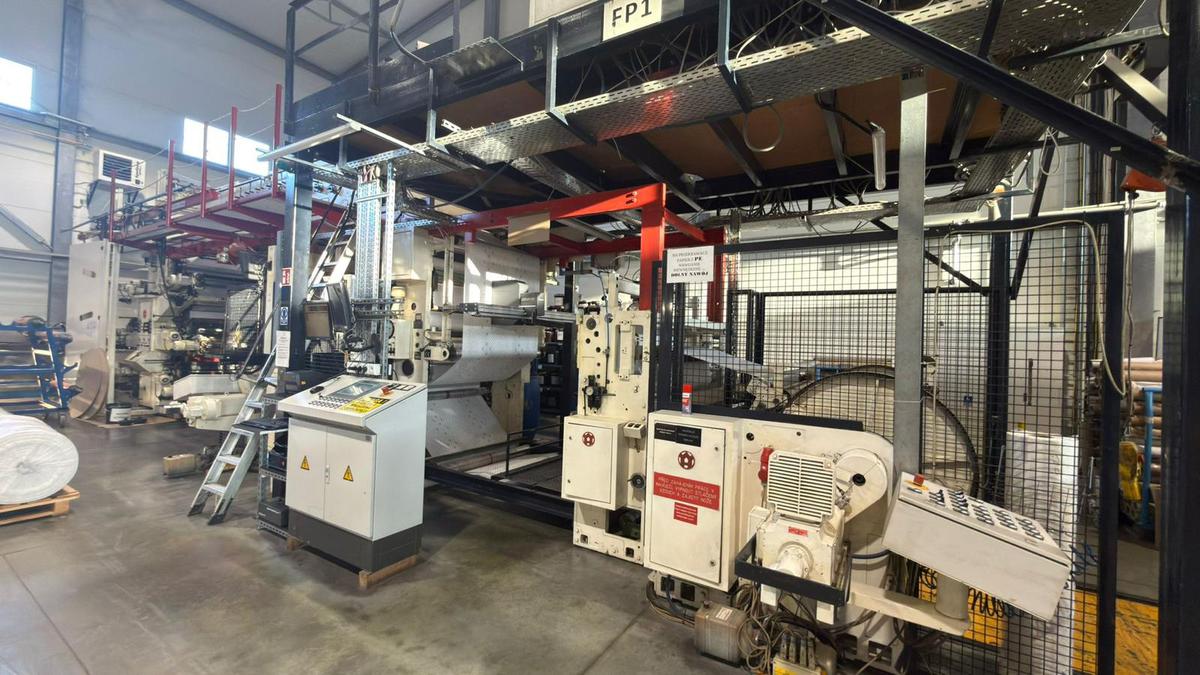

Inspection platform installed on top of the machine
Display above the rewinder showing printing speed.

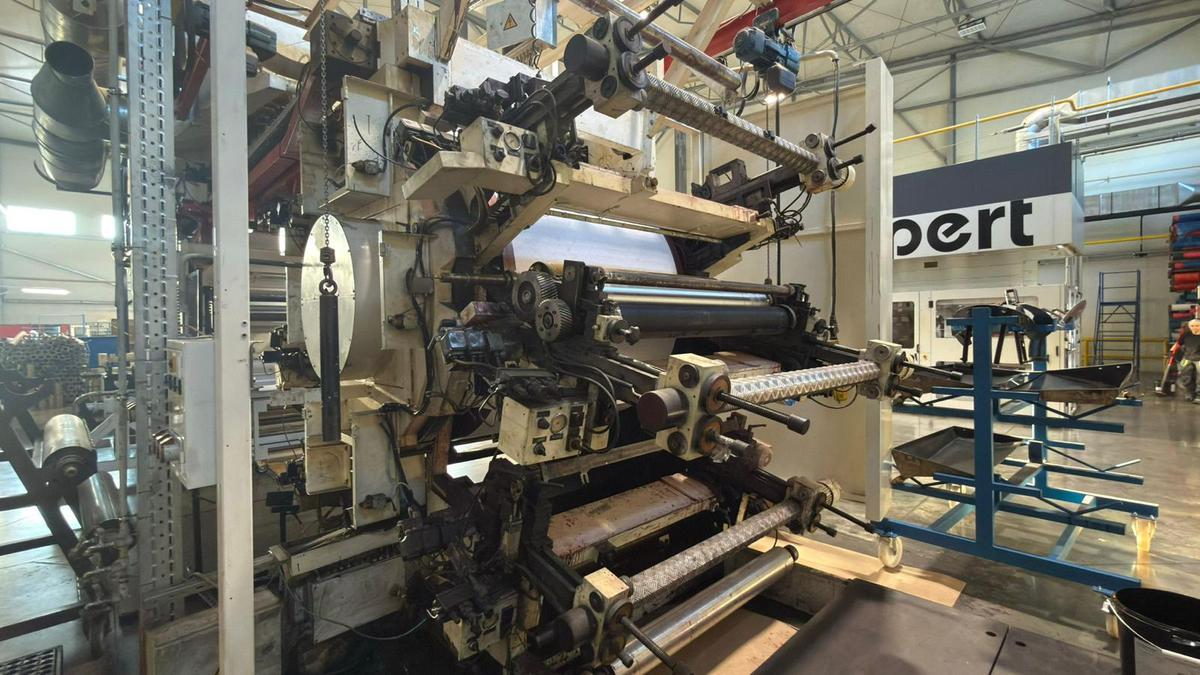

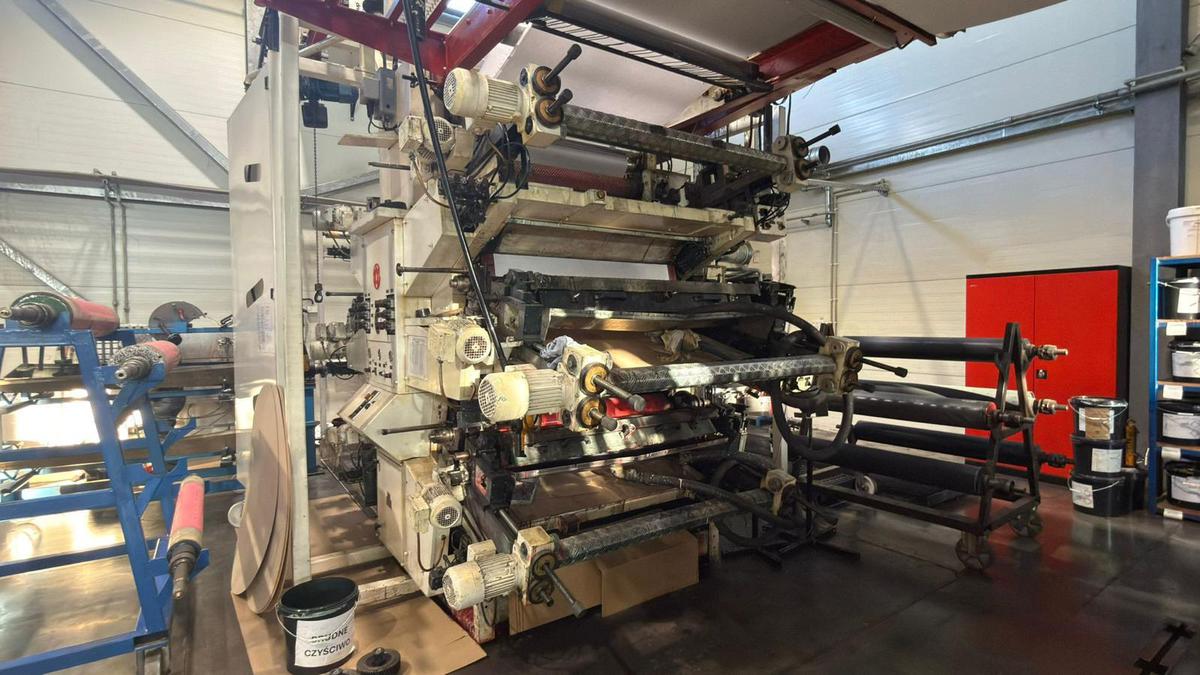

Printing Cylinders
16 cylinders in total : 5 x 310, 6 x 520, 5 x 580
Anilox Rolls
7 anilox rolls in total: 3 x 80, 1 x 120, 1 x 160, 2 x 200
Gears
157 gears in total
7 x 31, 8 x 32, 6 x 33, 6 x 34, 6 x 35, 6 x 36, 6 x 37, 6 x 38, 6 x 39, 4 x 40, 5 x
42, 6 x 44, 6 x 46, 6 x 49, 5 x 50, 6 x 52, 5 x 54, 5 x 57, 6 x 58, 5 x 59, 6 x 60, 6
x 61, 8 x 62, 5 x 64, 6 x 66, 1 x 70, 3 x 71, 3 x 75, 3 x 76
Sleeves Included – Inner / Outer Diameter
78 sleeves in total
9 x 310/320, 1 x 310/330, 5 x 310/340, 3 x 310/350, 4 x 310/360, 3 x 310/390, 5
x 310/380, 5 x 310/400, 2 x 310/420, 2 x 310/440, 1 x 310/450, 2 x 310/460, 1 x
310/490, 4 x 310/500, 4 x 520/520, 1 x 520/560, 5 x 520/570, 4 x 580/590, 2 x
580/600, 3 x 580/610, 2 x 580/620, 1 x 580/640, 4 x 580/660, 2 x 580/750, 3 x
580/760
Additional Information
Registration accuracy front/back: ± 1 mm
Siemens 5 electronic system
Explosion-proof: to be confirmed
Chiller available, not connected
Gas burner drying system available, not connected because the machine is
currently used for paper
Manuals and electrical diagrams available

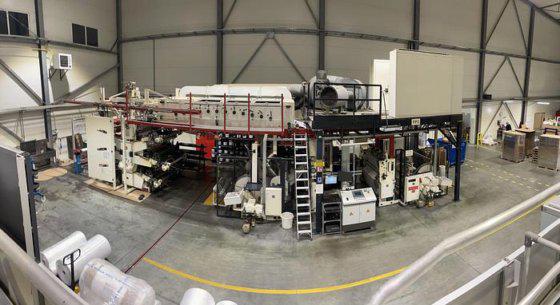

Overall dimensions (L x W x H): 17 x 8.30 x 5.20 m
Machine can be seen in production
Immediately available
